Swagger example payload lost on Single Page App

[locomotif]

Q&A (please complete the following information)

• OS: [macOS
• Browser: chrome
• Version: 69.0.3497.100 (Official Build) (64-bit)
• Method of installation: yarn
• Swagger-UI version: 3.19.0
• Swagger/OpenAPI version: 3.19.0
• React Version: 16.5.0

Content & configuration

Here is my initialization of the SwaggerUI inside a react component:

        // ...spec is of type `Object={}`
        this.parser.dereference(parsedSource).then(spec => {
            this.ui = SwaggerUi({
                dom_id: '#swaggerContainer',
                spec: spec,
                presets: [presets.apis],
                deepLinking: true
            })
            this.authorize()
        })

Describe the bug you're encountering

When our docs component initially loads for the first time the <RequestBodyEditor> component is rendered; However, if I route to a different page via react-router-dom then return to my docs component; the <RequestBodyEditor> component is not being rendered.

Below are two screen shots:

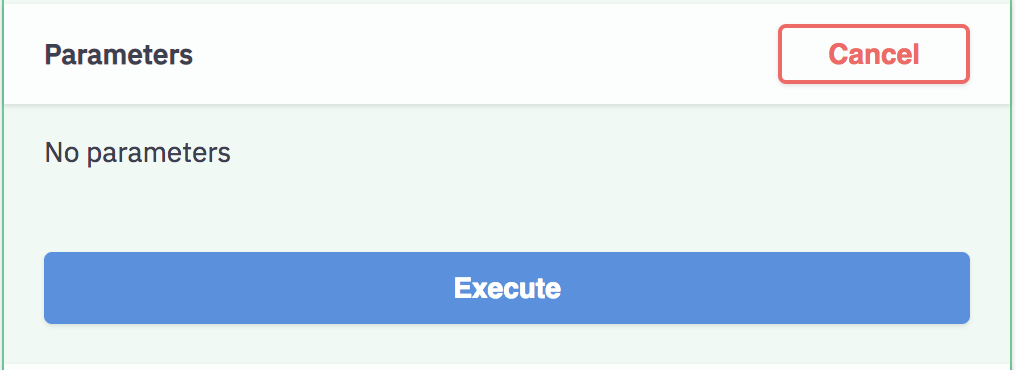

• first image is the initial render of docs component with <RequestBodyEditor> component
• second image is with missing <RequestBodyEditor> component.

Also note that every time that we toggle between one page and back to the docs page, a new React root is mounted. Below are two images describing what I mean:

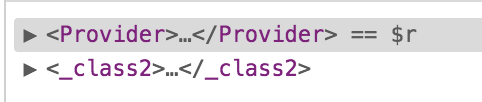

• first image is the initial load, one can see the swagger React node loaded using ReactDOM

• second image shows multiple swagger React nodes:

The first <_class2></_class2> react node contains the <RequestBodyEditor>, and all consecutive ones are missing <RequestBodyEditor>.

Attempts to fix:

I used ReactDOM.unmountComponentAtNode(node) on componentWillUnmount and node is the node returned by the ref attribute attached to the <div id="swaggerContainer" ref={this.handleRef} />. This did not solve the issue; however it did remove each <_class2></_class2> from memory, so they were not stacking on each other like on image two.

Next Attempt - did solve my issue:

When the first component loaded with a successful swagger instance with <RequestBodyEditor> component I would cache the return value from this.ui = SwaggerUi({...}). Whenever the docs component would re-mount and cachedSwaggerUI != null, I would use its render function with the node return by the ref attribute. I would not call SwaggerUI again in this scenario.

if (cachedSwaggerUI != null) {
    cachedSwaggerUI.render(node)
}

Expected behavior

I expect <RequestBodyEditor>, anytime my docs component is mounted.

Additional context or thoughts

This could be an issue because we are on React v16 and swagger is on v15.

[Mathias02]

Let me try to focus on this and see what it gives. This bug was reported with Swagger-UI version 3.19.0, unfortunately I have version 3.20.1 and couldn't reproduce this issue.
