Secure Cartography v2

SSH & SNMP-Based Network Discovery and Topology Mapping

Secure Cartography is a network discovery tool that crawls your infrastructure via SNMP and SSH, collecting CDP/LLDP neighbor information to automatically generate topology maps. Built by a network engineer, for network engineers.

What's New in v2

Version 2 is a complete rewrite with a modernized architecture:

Features

Discovery Engine

• SNMP-first discovery with automatic SSH fallback
• CDP and LLDP neighbor detection across vendors
• Two-pass LLDP resolution - correctly handles lldpLocPortNum vs ifIndex
• Bidirectional link validation - only confirmed connections appear in topology
• Concurrent crawling - discover 20+ devices simultaneously
• Depth-limited recursion - control how far the crawler goes
• Exclusion patterns - skip devices by hostname, sys_name, or sysDescr
• No-DNS mode - use IPs directly from neighbor tables (home lab friendly)

Credential Management

• Encrypted SQLite vault - AES-256-GCM encryption at rest
• Multiple credential types - SSH (password + key), SNMPv2c, SNMPv3
• Priority ordering - try credentials in sequence until one works
• Credential discovery - auto-detect which credentials work on which devices

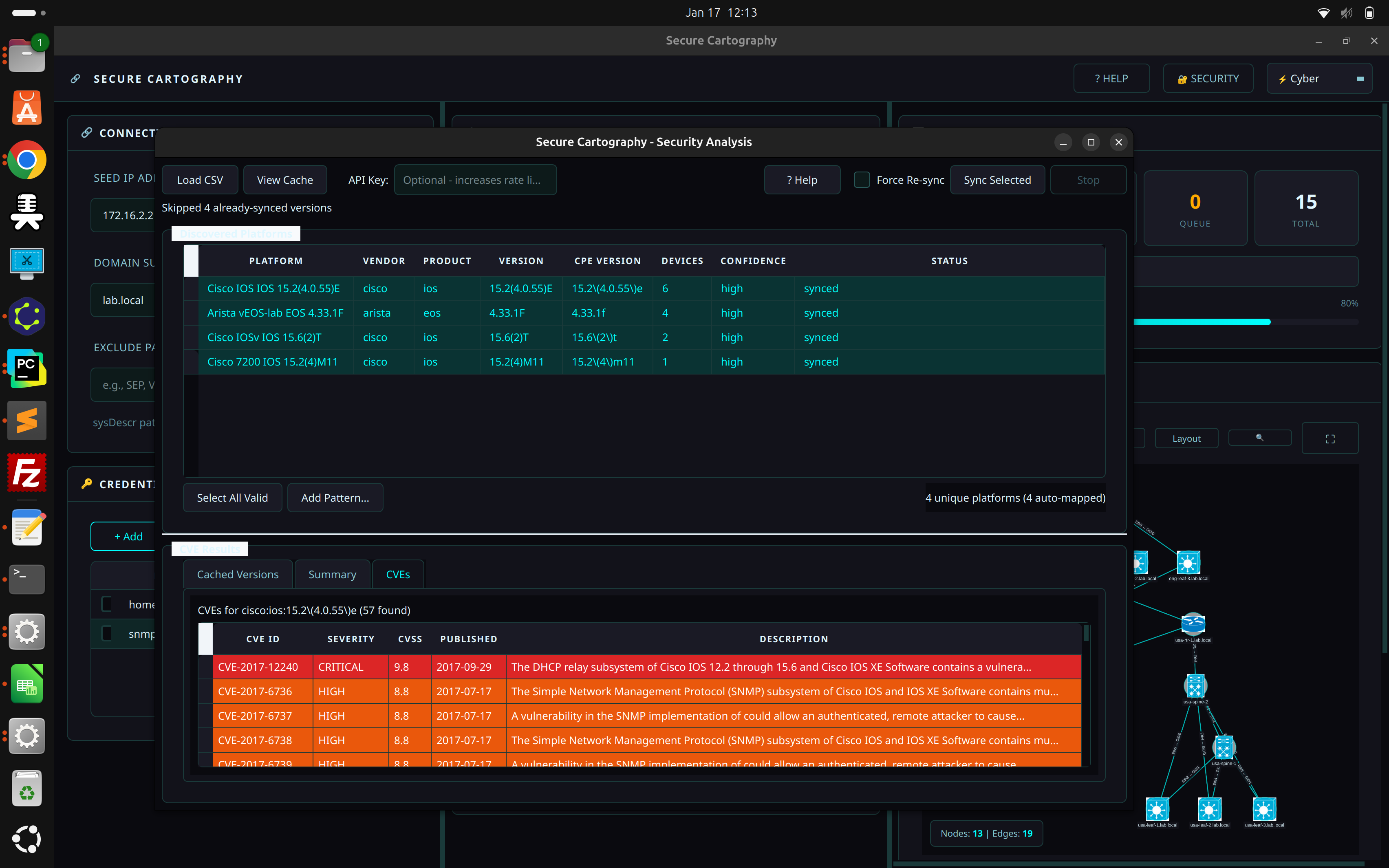

Security Analysis (CVE Vulnerability Scanning)

• Platform-to-CPE mapping - automatically parses discovered platform strings
• NIST NVD integration - queries National Vulnerability Database for CVEs
• Severity color-coding - CRITICAL/HIGH/MEDIUM/LOW at a glance
• Local CVE cache - SQLite cache avoids repeated API calls
• Export reports - CSV export with affected devices per CVE
• Device-centric view - "Export by Device" shows CVE counts per device
• Multi-vendor support - Cisco IOS/IOS-XE/NX-OS, Arista EOS, Juniper JUNOS, Palo Alto, Fortinet

Live Topology Preview

• Embedded Cytoscape.js viewer - interactive network visualization
• Real-time rendering - topology displayed immediately after discovery
• Vendor-specific icons - Cisco, Arista, Juniper with distinct styling
• Undiscovered peer nodes - referenced but unreachable devices shown with warning markers
• Theme-aware - visualization adapts to Cyber/Dark/Light themes
• Interactive controls - fit view, auto-layout, node selection with details popup

Themed GUI

• Three themes - Cyber (cyan), Dark (gold), Light (blue)
• Real-time progress - live counters, depth tracking, log output
• Responsive design - UI remains interactive during discovery
• Click-to-inspect - node details (hostname, IP, platform) on selection

Supported Platforms

Screenshots

Cyber - Teal accents	Dark - Gold accents	Light - Blue accents

Topology Preview - Cyber	Topology Preview - Dark	Topology Preview - Light

Login - Cyber	Login - Dark	Login - Light

Installation

Prerequisites

• Python 3.10 or higher
• pip

From Source

git clone https://github.com/scottpeterman/secure_cartography.git
cd secure_cartography
pip install -e .

Dependencies

# Core
pip install pysnmp-lextudio paramiko cryptography textfsm aiofiles

# GUI
pip install PyQt6 PyQt6-WebEngine

Quick Start

1. Initialize the Credential Vault

# Create vault and set master password
python -m sc2.scng.creds init

# Add SNMP credential
python -m sc2.scng.creds add snmpv2c snmp-readonly --community public

# Add SSH credential
python -m sc2.scng.creds add ssh network-admin --username admin

# List credentials
python -m sc2.scng.creds list

2. Test Connectivity

# Quick SNMP test (no vault needed)
python -m sc2.scng.discovery test 192.168.1.1 --community public

# Test with vault credentials
python -m sc2.scng.discovery device 192.168.1.1

3. Run Discovery

# Basic crawl
python -m sc2.scng.discovery crawl 192.168.1.1 -d 3

# With options
python -m sc2.scng.discovery crawl 192.168.1.1 10.0.0.1 \
    -d 5 \
    --domain corp.example.com \
    --exclude "phone,wireless,linux" \
    --output ./network_maps

4. Launch GUI

python -m sc2.ui

5. Security Analysis

After running discovery, click the 🔐 SECURITY button in the header bar to open the Security Analysis window:

1. Load CSV - Import the devices.csv from your discovery output
2. Review Mappings - Verify auto-detected platform → CPE mappings
3. Sync Selected - Query NIST NVD for CVEs (optional: add free API key for faster rate limits)
4. Analyze Results - Review CVEs sorted by severity
5. Export Report - Generate CSV with CVEs and affected devices

Security Analysis Workflow

The Security Analysis module transforms your network inventory into an actionable vulnerability report.

Platform Recognition

Secure Cartography automatically parses platform strings into CPE (Common Platform Enumeration) format:

"Cisco IOS IOS 15.2(4.0.55)E" → cpe:2.3:o:cisco:ios:15.2(4.0.55)e:*:*:*:*:*:*:*
"Arista vEOS-lab EOS 4.33.1F" → cpe:2.3:o:arista:eos:4.33.1f:*:*:*:*:*:*:*

CVE Lookup

Queries the NIST National Vulnerability Database for known vulnerabilities:

• Results cached locally in ~/.scng/cve_cache.db
• Free NVD API key increases rate limits (get one at nvd.nist.gov)

Export Options

Two export formats for different use cases:

Jump Host Workflow

When your desktop doesn't have SNMP access:

1. SSH to a jump host with network access
2. Run discovery via CLI: python -m sc2.scng.discovery crawl ...
3. Copy devices.csv back to your desktop
4. Open in GUI → Security Analysis → Load CSV → Sync

Architecture

sc2/
├── scng/                      # Discovery engine
│   ├── creds/                 # Credential vault
│   │   ├── vault.py           # Encrypted SQLite storage
│   │   ├── models.py          # SSH, SNMPv2c, SNMPv3 dataclasses
│   │   ├── resolver.py        # Credential testing & discovery
│   │   └── cli.py             # Credential management CLI
│   │
│   ├── discovery/             # Discovery engine
│   │   ├── engine.py          # Async orchestration, crawl logic
│   │   ├── models.py          # Device, Neighbor, Interface
│   │   ├── cli.py             # Discovery CLI
│   │   │
│   │   ├── snmp/              # SNMP collection
│   │   │   ├── walker.py      # Async GETBULK table walks
│   │   │   └── collectors/    # system, interfaces, lldp, cdp, arp
│   │   │
│   │   └── ssh/               # SSH fallback
│   │       ├── client.py      # Paramiko wrapper
│   │       ├── collector.py   # Vendor detection, command execution
│   │       └── parsers.py     # TextFSM integration
│   │
│   └── utils/
│       └── tfsm_fire.py       # TextFSM auto-template selection
│
└── ui/                        # PyQt6 GUI
    ├── themes.py              # Theme system (Cyber/Dark/Light)
    ├── login.py               # Vault unlock dialog
    ├── main_window.py         # Main application window
    ├── help_dialog.py         # Help system (GUI/CLI/Security docs)
    │
    └── widgets/               # Custom themed widgets
        ├── panel.py               # Base panel with title bar
        ├── connection_panel.py    # Seeds, domains, excludes
        ├── credentials_panel.py   # Credential management UI
        ├── discovery_options.py   # Depth, concurrency, toggles
        ├── output_panel.py        # Output directory config
        ├── progress_panel.py      # Stats, progress bar
        ├── discovery_log.py       # Styled log output
        ├── discovery_controller.py # Discovery↔UI bridge with throttled events
        ├── topology_preview_panel.py  # Preview container (singleton)
        ├── topology_viewer.py     # QWebEngineView + Cytoscape.js bridge
        ├── topology_viewer.html   # Cytoscape.js visualization
        ├── map_viewer_dialog.py   # Full-screen topology viewer
        ├── security_widget.py     # CVE vulnerability analysis
        ├── tag_input.py           # Tag/chip input widget
        ├── toggle_switch.py       # iOS-style toggle
        └── stat_box.py            # Counter display boxes

Topology Viewer

The embedded topology viewer uses Cytoscape.js for interactive network visualization.

Features

• Automatic layout - COSE algorithm for organic network arrangement
• Vendor icons - Platform-specific SVG icons (Cisco, Arista, Juniper)
• Undiscovered nodes - Peers referenced but not crawled shown with dashed borders and ⚠ markers
• Edge labels - Interface pairs displayed on connections
• Click inspection - Select nodes to view device details
• Theme integration - Colors adapt to current UI theme
• yEd Export - Export to GraphML for professional diagrams with port labels

Data Flow

Discovery Engine → map.json → Base64 encode → QWebChannel → JavaScript → Cytoscape.js

The viewer uses base64 encoding for reliable Python→JavaScript data transfer, avoiding escaping issues with complex JSON payloads.

CLI Reference

Secure Cartography provides two CLI modules that can be used independently of the GUI:

• sc2.scng.creds - Credential vault management
• sc2.scng.discovery - Network discovery engine

Both CLIs support --help on all commands and subcommands.

Credential Management (sc2.scng.creds)

usage: scng-creds [-h] [--vault-path VAULT_PATH] [--password PASSWORD]
                  {init,unlock,add,list,show,remove,set-default,test,discover,change-password,deps} ...

Global Options

Commands

init - Initialize a new vault

python -m sc2.scng.creds init
python -m sc2.scng.creds init --vault-path /path/to/custom.db

add - Add credentials

# SSH with password (prompts for password)
python -m sc2.scng.creds add ssh admin-cred --username admin --password

# SSH with key file
python -m sc2.scng.creds add ssh key-cred --username automation --key-file ~/.ssh/id_rsa

# SNMPv2c
python -m sc2.scng.creds add snmpv2c readonly --community public

# SNMPv3 (authPriv)
python -m sc2.scng.creds add snmpv3 snmpv3-cred \
    --username snmpuser \
    --auth-protocol sha256 \
    --auth-password authpass123 \
    --priv-protocol aes128 \
    --priv-password privpass123

list - List all credentials

python -m sc2.scng.creds list

Output shows credential name, type, priority, and default status.

show - Show credential details

python -m sc2.scng.creds show admin-cred
python -m sc2.scng.creds show admin-cred --reveal  # Show passwords/communities

remove - Delete a credential

python -m sc2.scng.creds remove old-credential

set-default - Set credential as default for its type

python -m sc2.scng.creds set-default admin-cred

test - Test credential against a host

python -m sc2.scng.creds test admin-cred 192.168.1.1
python -m sc2.scng.creds test readonly 10.0.0.1

discover - Find which credentials work on a host

python -m sc2.scng.creds discover 192.168.1.1

Tests all credentials and reports which ones succeed.

change-password - Change vault master password

python -m sc2.scng.creds change-password

deps - Check required dependencies

python -m sc2.scng.creds deps

Network Discovery (sc2.scng.discovery)

usage: scng.discovery [-h] {test,device,crawl} ...

Commands

test - Quick SNMP connectivity test (no vault required)

python -m sc2.scng.discovery test 192.168.1.1 --community public
python -m sc2.scng.discovery test 192.168.1.1 --community public --verbose

device - Discover a single device

python -m sc2.scng.discovery device 192.168.1.1
python -m sc2.scng.discovery device core-switch.example.com --output ./results

crawl - Recursive network discovery

usage: scng.discovery crawl [-h] [-d DEPTH] [--domain DOMAINS] [--exclude EXCLUDE_PATTERNS]
                            [-o OUTPUT] [-v] [--no-dns] [-c CONCURRENCY] [-t TIMEOUT]
                            [--no-color] [--timestamps] [--json-events]
                            seeds [seeds ...]

Crawl Examples

# Basic crawl from single seed
python -m sc2.scng.discovery crawl 192.168.1.1

# Multiple seeds with depth limit
python -m sc2.scng.discovery crawl 10.1.1.1 10.2.1.1 --depth 5

# With domain suffix for DNS resolution
python -m sc2.scng.discovery crawl core-sw01 --domain corp.example.com --domain example.com

# Exclude devices by pattern (matches hostname, sys_name, or sysDescr)
python -m sc2.scng.discovery crawl 192.168.1.1 --exclude "linux,vmware,phone"

# Multiple exclude flags also work
python -m sc2.scng.discovery crawl 192.168.1.1 \
    --exclude "linux" \
    --exclude "phone" \
    --exclude "wireless"

# Home lab mode (no DNS, faster)
python -m sc2.scng.discovery crawl 192.168.1.1 --no-dns

# High concurrency for large networks
python -m sc2.scng.discovery crawl 10.0.0.1 -c 50 -d 10 -o ./enterprise_map

# Full production example
python -m sc2.scng.discovery crawl \
    core-rtr-01.dc1.example.com \
    core-rtr-01.dc2.example.com \
    --depth 8 \
    --domain dc1.example.com \
    --domain dc2.example.com \
    --exclude "linux,esxi,vcenter,phone,wireless,ups" \
    --concurrency 30 \
    --timeout 10 \
    --output ./network_discovery_$(date +%Y%m%d) \
    --verbose

Exclusion Patterns

The --exclude option filters devices from propagating the crawl. Patterns are:

• Case-insensitive substring matches
• Comma-separated for multiple patterns in one flag
• Matched against three fields: sysDescr, hostname, and sys_name

This means exclusions work for both SNMP-discovered devices (via sysDescr) and SSH-discovered devices (via hostname).

Note: Excluded devices are still discovered (credentials tested, data collected), but their neighbors are not queued for further discovery. This prevents the crawl from expanding through non-network infrastructure.

Output Format

Discovery creates per-device folders with JSON data:

discovery_output/
├── core-switch-01/
│   ├── device.json      # System info, interfaces
│   ├── cdp.json         # CDP neighbors
│   └── lldp.json        # LLDP neighbors
├── dist-switch-01/
│   └── ...
├── devices.csv          # Device inventory (for Security Analysis)
├── discovery_summary.json
├── topology.graphml     # yEd-compatible graph
└── map.json             # Topology with bidirectional validation

map.json (Topology)

{
  "core-switch-01": {
    "node_details": {
      "ip": "10.1.1.1",
      "platform": "Arista vEOS-lab EOS 4.33.1F"
    },
    "peers": {
      "dist-switch-01": {
        "ip": "10.1.1.2",
        "connections": [
          ["Eth1/1", "Gi0/1"],
          ["Eth1/2", "Gi0/2"]
        ]
      }
    }
  }
}

devices.csv (Security Analysis Input)

hostname,ip,platform,vendor,model,serial
core-switch-01,10.1.1.1,Cisco IOS IOS 15.2(4.0.55)E,cisco,WS-C3850-24T,FCW2134L0NK
dist-switch-01,10.1.1.2,Arista vEOS-lab EOS 4.33.1F,arista,vEOS,SN-VEOS-01

GUI Theme System

The GUI uses a comprehensive theme system with three built-in themes:

See README_Style_Guide.md for widget styling details.

Documentation

Development Status

✅ Complete

• Credential vault with encryption
• SNMP discovery (v2c, v3)
• SSH fallback discovery
• Async crawl engine with progress events
• CLI for creds and discovery
• Theme system (Cyber/Dark/Light)
• Login dialog with vault unlock
• Main window layout with all panels
• Custom themed widgets
• Discovery↔UI integration with throttled events
• Live topology preview with Cytoscape.js
• Undiscovered peer node visualization
• Security Analysis with CVE vulnerability scanning
• Export to yEd (GraphML with port labels)
• Built-in help system

📋 Planned

• Map enhancement tools (manual node positioning, annotations)
• Credential auto-discovery integration
• Settings persistence
• Export topology as PNG/SVG
• Topology diff (compare discoveries)

Technical Notes

Threading Architecture

The GUI uses a careful threading model to prevent UI lockups:

• Discovery runs in QThread - async engine wrapped in worker thread
• Events throttled at source - high-frequency events (stats, topology) rate-limited before emission
• QueuedConnection for all signals - ensures slots execute on main thread
• WebView isolation - no webview updates during active discovery; topology loads once at completion

Topology Data Transfer

Python→JavaScript communication uses base64 encoding:

# Python side
b64_data = base64.b64encode(json.dumps(topology).encode()).decode()
self._run_js(f"TopologyViewer.loadTopologyB64('{b64_data}')")

// JavaScript side
loadTopologyB64(b64String) {
    const jsonString = atob(b64String);
    this.loadTopology(jsonString);
}

This avoids JSON escaping issues with complex network data containing special characters.

Security Analysis Architecture

The Security Widget operates independently of the discovery engine:

• Platform parsing - regex patterns extract vendor/product/version from sysDescr strings
• CPE generation - converts parsed data to NIST CPE 2.3 format
• NVD API client - async queries with rate limiting and caching
• SQLite cache - ~/.scng/cve_cache.db stores CVE data to avoid repeated API calls
• Device tracking - maps CVEs back to specific hostnames/IPs from discovery CSV

Security Considerations

• Master password is never stored; derived key is held in memory only while vault is unlocked
• Credentials are encrypted with AES-256-GCM before storage
• Salt is randomly generated per installation
• No credentials in logs - discovery output never includes passwords/communities
• Vault auto-locks when application exits
• CVE cache is local - no sensitive data sent to NVD (only CPE queries)

Performance

Typical discovery rates:

• Single device (SNMP): 2-5 seconds
• Single device (SSH fallback): 5-15 seconds
• 100 devices: 3-8 minutes with 20 concurrent workers
• 750+ devices: ~4-5 hours (production tested, 88%+ success rate)

Security Analysis:

• NVD API (no key): 5 requests per 30 seconds
• NVD API (with key): 50 requests per 30 seconds
• Cached lookups: instant

GUI remains responsive during discovery due to throttled event architecture.

License

This project is licensed under the GNU General Public License v3.0 - see LICENSE for details.

GPL v3 is required due to the use of PyQt6.

Author

Scott Peterman - Network Engineer

• GitHub: @scottpeterman
• LinkedIn: scottpeterman

Built by a network engineer who got tired of manually drawing topology diagrams.

Acknowledgments

• Network visualization powered by Cytoscape.js
• SNMP operations via pysnmp-lextudio
• SSH via Paramiko
• CLI parsing with TextFSM
• GUI powered by PyQt6
• Encryption via cryptography
• CVE data from NIST National Vulnerability Database
