Failed to deploy px to EKS
Describe the bug
I can't finish pix installation with pix deploy.
I find the error message in source code .
https://github.com/pixie-labs/pixie/blob/1ec75d3b13/src/pixie_cli/pkg/cmd/deploy.go
main code as follow:
for !clusterIDExists { // Wait for secret to be updated with clusterID.
select {
case <-ctx.Done():
// Using log.Fatal rather than CLI log in order to track this unexpected error in Sentry.
log.Fatal("Timed out waiting for cluster ID assignment")
case <-t.C:
s := k8s.GetSecret(clientset, namespace, "pl-cluster-secrets")
if cID, ok := s.Data["cluster-id"]; ok {
clusterID = uuid.FromStringOrNil(string(cID))
clusterIDExists = true
}
}
}
it will get secret pl-cluster-secrets,then get cluster-id
I can only find sentry-dsn value.
To Reproduce
Steps to reproduce the behavior:
px deploy
Screenshots

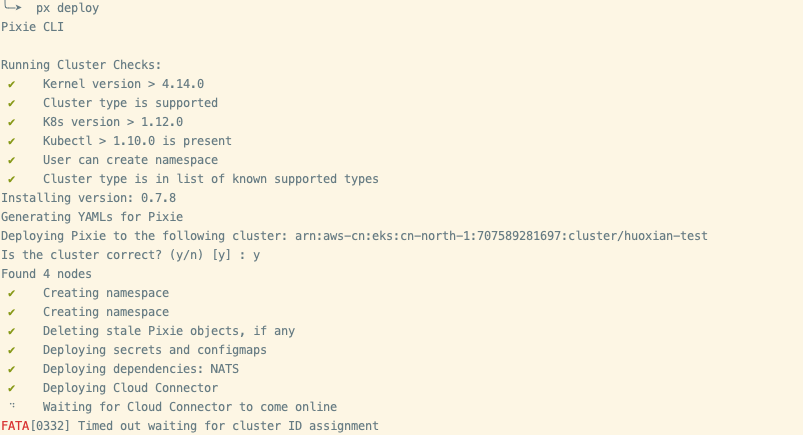

Logs
px deploy
Pixie CLI
Running Cluster Checks:
✔ Kernel version > 4.14.0
✔ Cluster type is supported
✔ K8s version > 1.12.0
✔ Kubectl > 1.10.0 is present
✔ User can create namespace
✔ Cluster type is in list of known supported types
Installing version: 0.7.8
Generating YAMLs for Pixie
Deploying Pixie to the following cluster: arn:aws-cn:eks:cn-north-1:707589281697:cluster/huoxian-test
Is the cluster correct? (y/n) [y] : y
Found 4 nodes
✔ Creating namespace
✔ Creating namespace
✔ Deleting stale Pixie objects, if any
✔ Deploying secrets and configmaps
✔ Deploying dependencies: NATS
✔ Deploying Cloud Connector
⠙ Waiting for Cloud Connector to come online
FATA[0332] Timed out waiting for cluster ID assignment
App information (please complete the following information):
- Pixie version : 0.7.8
- K8s cluster version : v1.18.9
Can you share the output of px collect-logs?
For context, the cloudConnector pod is responsible for populating the cluster-id once it has connected to Pixie Cloud. There is likely something preventing the pod from starting up/connecting.
Can you share the output of
px collect-logs? For context, the cloudConnector pod is responsible for populating thecluster-idonce it has connected to Pixie Cloud. There is likely something preventing the pod from starting up/connecting.
Pixie CLI
WARN[0002] Failed to log pod: cert-provisioner-job-khkx5 error="container \"provisioner\" in pod \"cert-provisioner-job-khkx5\" is waiting to start: trying and failing to pull image"
WARN[0002] Failed to log pod: kelvin-788c78675f-949vh error="container \"app\" in pod \"kelvin-788c78675f-949vh\" is waiting to start: PodInitializing"
WARN[0002] Failed to log pod: pl-nats-1 error="container \"nats\" in pod \"pl-nats-1\" is waiting to start: ContainerCreating"
WARN[0002] Failed to log pod: vizier-certmgr-67877bb9b4-rmnkl error="container \"app\" in pod \"vizier-certmgr-67877bb9b4-rmnkl\" is waiting to start: ContainerCreating"
WARN[0002] Failed to log pod: vizier-cloud-connector-54df554584-56h92 error="container \"app\" in pod \"vizier-cloud-connector-54df554584-56h92\" is waiting to start: ContainerCreating"
WARN[0003] Failed to log pod: vizier-metadata-0 error="container \"app\" in pod \"vizier-metadata-0\" is waiting to start: PodInitializing"
WARN[0003] Failed to log pod: vizier-pem-7qt25 error="container \"pem\" in pod \"vizier-pem-7qt25\" is waiting to start: PodInitializing"
WARN[0003] Failed to log pod: vizier-pem-99qjn error="container \"pem\" in pod \"vizier-pem-99qjn\" is waiting to start: PodInitializing"
WARN[0004] Failed to log pod: vizier-pem-m2skc error="container \"pem\" in pod \"vizier-pem-m2skc\" is waiting to start: PodInitializing"
WARN[0004] Failed to log pod: vizier-pem-zgdx7 error="container \"pem\" in pod \"vizier-pem-zgdx7\" is waiting to start: PodInitializing"
WARN[0005] Failed to log pod: vizier-proxy-7c45cd454-zkbwb error="container \"app\" in pod \"vizier-proxy-7c45cd454-zkbwb\" is waiting to start: ContainerCreating"
WARN[0005] Failed to log pod: vizier-query-broker-57d74999ff-k5cbp error="container \"app\" in pod \"vizier-query-broker-57d74999ff-k5cbp\" is waiting to start: PodInitializing"
Logs written to pixie_logs_20210513163214.zip
Can you attach the generated pixie_logs_20210513163214.zip?
I am not sure if the logs contain sensitive information. Can I send you an email or other ways?

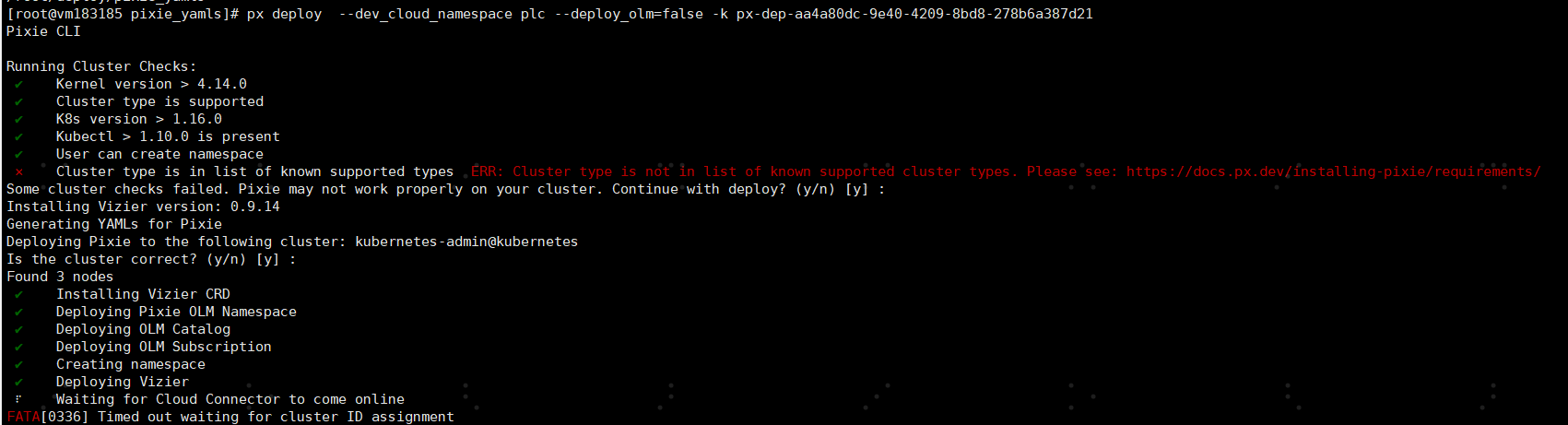

@aimichelle I am also getting exactly same error on Private Clouds.
I execute “px collect-logs” get the nodes.log,services.log is empty.
BTW,the server cannot access the internet, i found px-operator/6a7202426e40a08e4a421d7ffb76fd866c4c82d8937874b36ed663--1-hdqsc pullImageError,then i I replaced the imageurl in the yaml. Then manually executed 'kubectl apply -f *--1-hdqsc'. I'm not sure if this operation caused the error.
any update on this ? or any debug methods ? I am getting the exactly same error, and confused. it's said to check vizer-cloud-connector, but I didn't see any pod with this name.
any update on this ? or any debug methods ? I am getting the exactly same error, and confused. it's said to check vizer-cloud-connector, but I didn't see any pod with this name.
yeah !
use : px collect-logs and then out put
WARN[0006] Failed to log pod: pixie-operator-index-5nb4k error="container "registry-server" in pod "pixie-operator-index-5nb4k" is waiting to start: trying and failing to pull image"
@wnz27 can you provide the kubectl describe output of those pods? That should help explain why the image pull is failing.
@wnz27 can you provide the
kubectl describeoutput of those pods? That should help explain why the image pull is failing.
may be the cluster web problem， i'will try later， if i try success. i'll comment here
