AttributeError: 'NoneType' object has no attribute 'primary_ip'
Environment
- Python version: 3.7.9
- Network Importer version: 2.0.0b3
Configuration:
[main]
import_ips = true
import_prefixes = true
import_cabling = "lldp" \# Valid options are ["lldp", "cdp", "config", false]
import_intf_status = true \# If set as False, interface status will be ignore all together
import_vlans = "config" \# Valid options are ["cli", "config", true, false]
\# excluded_platforms_cabling = ["cisco_asa"]
\# Directory where the configurations can be find, organized in Batfish format
\# configs_directory= "configs"
[inventory]
\# Limit the scope of the inventory to a subset of devices
\# Accept any parameters supported by NetBox devices API
\# filter = "site=nyc,role=router"
\# filter = ""
\# Define a list of supported platform,
\# if defined all devices without platform or with a different platforms will be removed from the inventory
\# supported_platforms = [ "cisco_ios", "cisco_nxos" ]
[netbox]
\# The information to connect to netbox needs to be provided, either in the config file or as environment variables
address = "http://redacted:8000" \# Alternative Env Variable : NETBOX_ADDRESS
token = "redacted" \# Alternative Env Variable : NETBOX_TOKEN
verify_ssl = false \# Alternative Env Variable : NETBOX_VERIFY_SSL
[network]
\# To be able to pull live information from the devices, the credential information needs to be provided
\# either in the configuration file or as environment variables ( & NETWORK_DEVICE_PWD)
login = "root" \# Alternative Env Variable : NETWORK_DEVICE_LOGIN
password = "redacted" \# Alternative Env Variable : NETWORK_DEVICE_PWD
[batfish]
address= "localhost" \# Alternative Env Variable : BATFISH_ADDRESS
\# api_key = "XXXX" \# Alternative Env Variable : BATFISH_API_KEY
\# use_ssl = false
[logs]
\# Define log level, curently the logs are printed on the screen
\# level = "info" \# "debug", "info", "warning"
level = "debug"
Steps to Reproduce
- Use above configuration file
- Run
network-importer apply --update-configsor justnetwork-importer apply - Error
Expected Behavior
To complete
Observed Behavior
stack trace
Traceback (most recent call last):
File "/usr/local/bin/network-importer", line 8, in <module>
sys.exit(main())
File "/usr/local/lib/python3.7/site-packages/click/core.py", line 829, in __call__
return self.main(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/click/core.py", line 782, in main
rv = self.invoke(ctx)
File "/usr/local/lib/python3.7/site-packages/click/core.py", line 1259, in invoke
return _process_result(sub_ctx.command.invoke(sub_ctx))
File "/usr/local/lib/python3.7/site-packages/click/core.py", line 1066, in invoke
return ctx.invoke(self.callback, **ctx.params)
File "/usr/local/lib/python3.7/site-packages/click/core.py", line 610, in invoke
return callback(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/network_importer/cli.py", line 111, in apply
ni.sync()
File "/usr/local/lib/python3.7/site-packages/network_importer/main.py", line 169, in sync
self.sot.sync_from(self.network, diff_class=NetworkImporterDiff)
File "/usr/local/lib/python3.7/site-packages/diffsync/__init__.py", line 484, in sync_from
self._sync_from_diff_element(child, flags=flags, logger=log)
File "/usr/local/lib/python3.7/site-packages/diffsync/__init__.py", line 577, in _sync_from_diff_element
self._sync_from_diff_element(child, flags=flags, parent_model=obj, logger=logger)
File "/usr/local/lib/python3.7/site-packages/diffsync/__init__.py", line 546, in _sync_from_diff_element
obj = obj.delete()
File "/usr/local/lib/python3.7/site-packages/network_importer/adapters/netbox_api/models.py", line 248, in delete
if dev.primary_ip and dev.primary_ip in self.ips:
AttributeError: 'NoneType' object has no attribute 'primary_ip'
The entire dev object on
https://github.com/networktocode/network-importer/blob/05e5c8eb226343a82382cb9a2a438189ac9555c8/network_importer/adapters/netbox_api/models.py#L255
Is of type 'None'. If I print self I get "ff-ch1-105-ext-sw.redacted.com__irb.4001" which is the device name and irb.4001 is an interface with IP x.x.x.2/24 of which a print of self.ips shows
All IP's and prefixes are imported correctly. This looks like its failing on the very first device and I can also see this in debug log
2021-01-12 12:32:53,315 - network-importer - WARNING - Unable to update interface reth0.4001 on FF_CH_EQ1 in Netbox ({"tagged_vlans":["Invalid pk \"None\" - object does not exist."]})
which comes after the line
2021-01-12 12:32:53,139 - network-importer - DEBUG - Update interface : {'device': 1, 'name': 'reth0.4001', 'type': 'virtual', 'description': 'Trunk LACP to Chicago TOR for internet traffic', 'tagged_vlans': [None], 'lag': None}
The interface is VLAN tagged with tag 4001
So I guess it was my order of operation which maybe should be documented? I did my very first run with the config you see above however it would not complete until I did each of the [main] section one by one...run 1 with all of them set to false, run 2 just import_ips, run 3 import_ips+import_prefixes true, so on and so forth
After this the run completed without a stack trace
However, I see this in the debug log
2021-01-12 12:39:41,918 - network-importer - DEBUG - Update interface : {'device': 1, 'name': 'reth1.110', 'type': 'virtual', 'description': 'Chicago INFDMZ VLAN', 'tagged_vlans': [None], 'lag': None} 2021-01-12 12:39:42,071 - network-importer - WARNING - Unable to update interface reth1.110 on FF_CH_EQ1 in Netbox ({"tagged_vlans":["Invalid pk \"None\" - object does not exist."]}) 2021-01-12 12:39:42,071 - diffsync - WARNING - 2021-01-12 17:39.42 [warning ] Non-fatal failure encountered [diffsync] action=update diffs={'src': {'mode': 'L3_SUB_VLAN', 'allowed_vlans': ['equinix-chicago-ch1__110']}, 'dst': {'mode': 'NONE', 'allowed_vlans': []}} dst=<Netbox> flags=<DiffSyncFlags.NONE: 0> model=interface src=<Network> status=failure unique_id=FF_CH_EQ1__reth1.110 2021-01-12 12:39:42,071 - diffsync - WARNING - 2021-01-12 17:39.42 [warning ] Not syncing children [diffsync] action=update diffs={'src': {'mode': 'L3_SUB_VLAN', 'allowed_vlans': ['equinix-chicago-ch1__110']}, 'dst': {'mode': 'NONE', 'allowed_vlans': []}} dst=<Netbox> flags=<DiffSyncFlags.NONE: 0> model=interface src=<Network> unique_id=FF_CH_EQ1__reth1.110

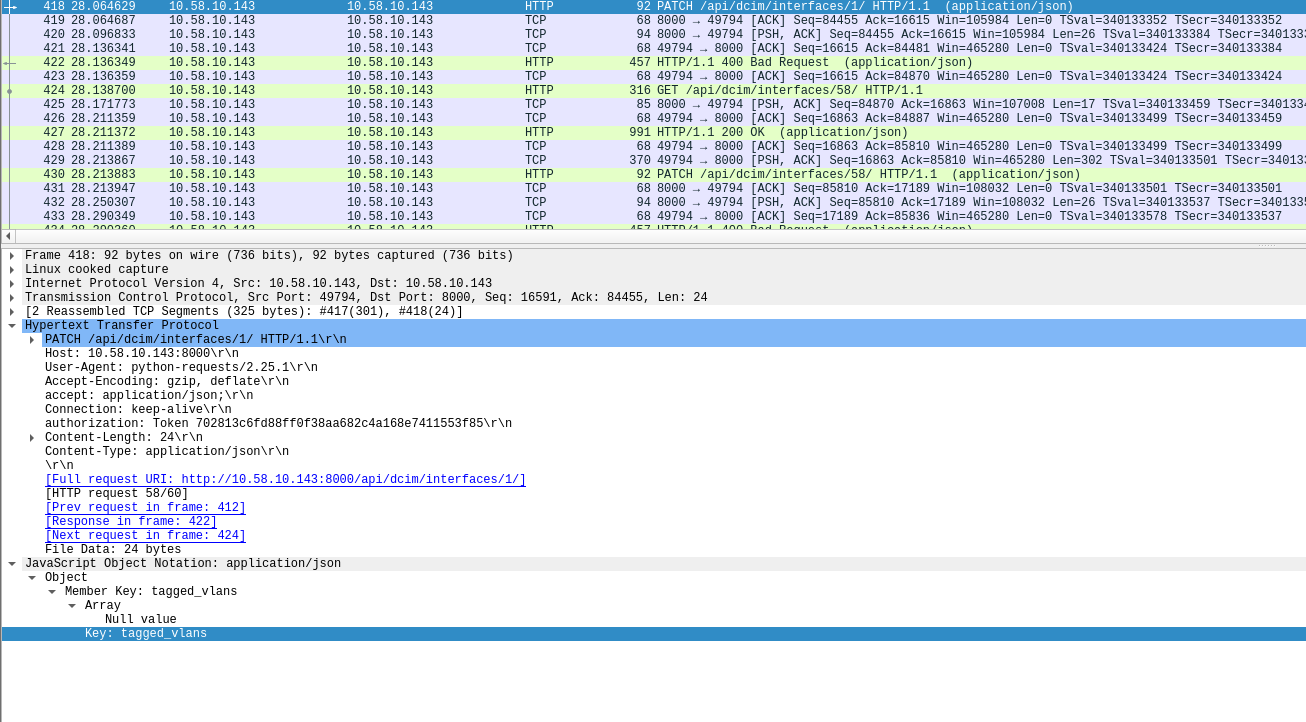

Looking at wireshark to look at the request being sent since I see 400's in netbox log and I can see that importer is sending {"tagged_vlans": [null]} in the HTTP request
Thanks for the detailed information, it's very useful. I'll try to reproduce the bug locally
The network-importer should be able to work in 1 run, without having to comment out all features one by one
@dgarros upon adding a new device, it seems I have to do each step before import_vlans will complete. So I need to do import_ips = true with the rest set to false, then I can do import_ips and import_prefixes, and so on and so forth
No special configuration on my devices or anything either
Actually, disregard, check works but apply does not. New object indicated this time but still dev object null
2021-01-22 11:22:15,120 - network-importer - DEBUG - Found 47 cables from Cli
Traceback (most recent call last):
File "/usr/local/bin/network-importer", line 8, in
Actually, I think this comes down to VLAN information not supported in napalm for Juniper
@ckozler
I'm currently running into the same problem. AttributeError: 'NoneType' object has no attribute 'primary_ip'
The dev object is None.
Debug Log
2021-02-12 10:29:30,745 - network-importer - INFO - Import SOT Model
2021-02-12 10:29:31,027 - network-importer - DEBUG - Netbox | Found 1 interfaces for DEVICE
2021-02-12 10:29:31,085 - network-importer - DEBUG - Netbox | Found 1 ip addresses for DEVICE
2021-02-12 10:29:31,112 - network-importer - DEBUG - Netbox | Found 0 cables in netbox for site-slug
2021-02-12 10:29:31,112 - network-importer - INFO - Import Network Model
2021-02-12 10:29:32,373 - network-importer - WARNING - Unable to find information for R113-OV in Batfish, SKIPPING
self._data[modelname] - file __init__.py
defaultdict(<class 'dict'>, {'site': {}, 'device': {}, 'interface': {'DEVICE__Loopback0': interface "DEVICE__Loopback0"}, 'ip_address': {'123.456.789.22/32': ip_address "123.456.789.22/32"}, 'cable': {}})
uid- DEVICE
Then the error of NoneType appears
I just published a new version in Pypi : 2.0.0-beta4 that is solving this issue.
I just published a new version in Pypi :
2.0.0-beta4that is solving this issue. @dgarros Thank you. There is no problem with the error above.
May I have a question? I'm now ending with
raise ObjectNotFound(f"{modelname} {uid} not present in {self.name}")
diffsync.exceptions.ObjectNotFound: device R113-OV not present in Netbox
The device R113-OV is definitely in the netbox. I've imported it by onboarding plugin
@Kani999 Please can you open a new issue to track this one and provide your configuration file and the output of the cli. thanks
Also please can you check if you device is present in network-importer inventory
