Hello,

I would like to use the multithreaded publisher example with custom_transport via a usb cable. We are using the latest foxy branch.

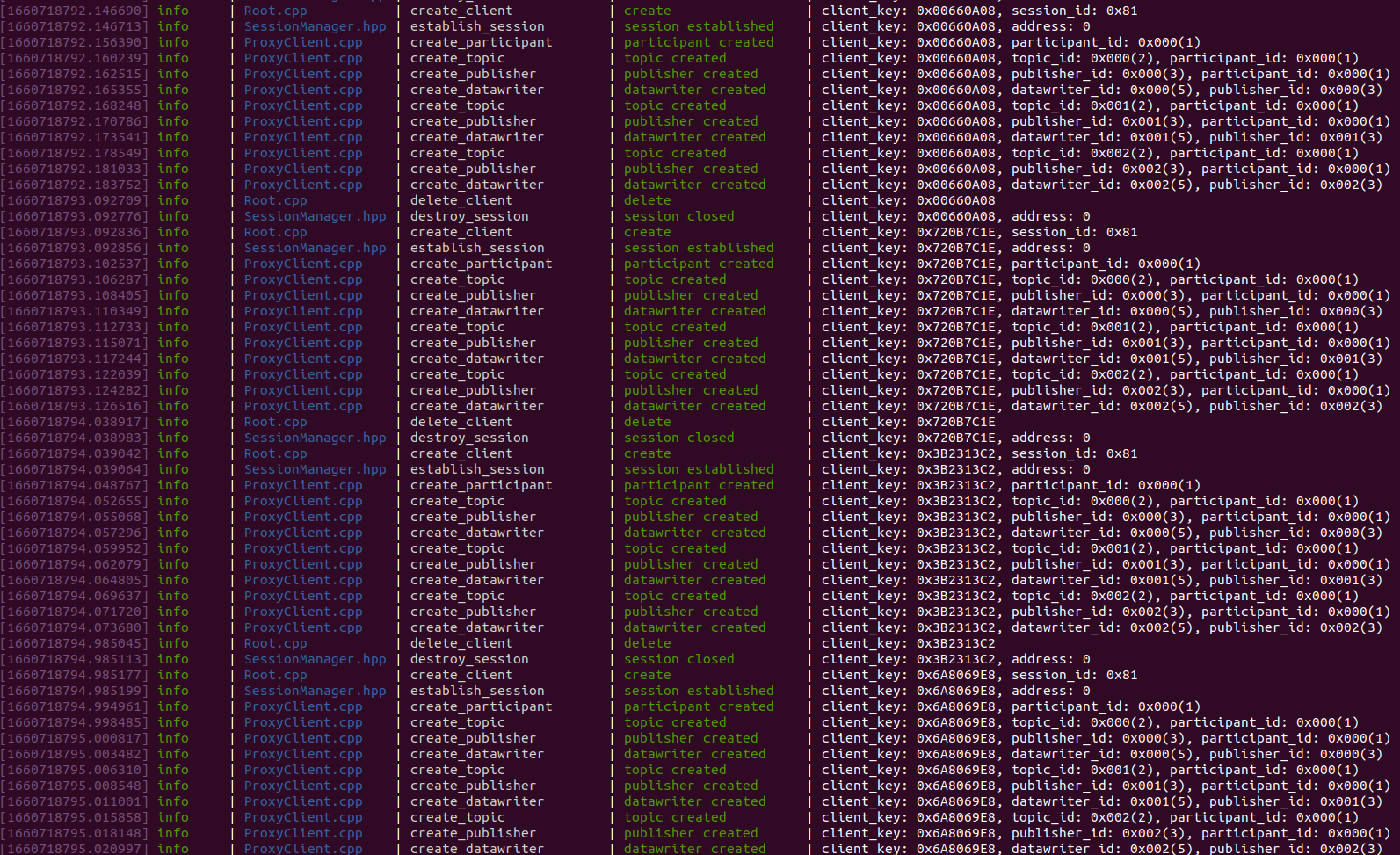

Unfortunately I get a continuous reconnection on the host side with the publishers being created but then the client getting deleted.

Does anyone know what the issue may be? Thanks

[Acuadros95]

Hi @shecker, a few questions:

• Did you modify the example in any way? (I see three publishers are created instead of two as in the example).
• Does your code works with the default UDP or the provided serial transport?
• Could you elaborate on how your custom transport works?

[shecker]

Hi @Acuadros95

Thanks for your reply. I've done further debugging and have prevented the esp32 from restarting. Now it either publishes with "-DUCLIENT_PROFILE_MULTITHREAD=OFF" or does not connect at all with "-DUCLIENT_PROFILE_MULTITHREAD=ON"

• I modified the multithread_publisher example by adding in the custom transport functionality from the int32_publisher_custom_transport. I have attached the file here. In addition I modified the app-colcon.meta to include

"microxrcedds_client": {
    "cmake-args": [
        "-DUCLIENT_PROFILE_MULTITHREAD=ON"
    ]
},

• My code does not use UDP but serial transport.
• I followed the example int32_publisher_custom_transport but set the baud rate higher (2000000) -> this works well without multithreading.

I believe the issue occurs when I change this line from ON to OFF: "-DUCLIENT_PROFILE_MULTITHREAD=ON"

[Acuadros95]

I believe the issue occurs when I change this line from ON to OFF: "-DUCLIENT_PROFILE_MULTITHREAD=ON"

That is expected, this option enables micro-ROS multithread support. It needs to be enabled for any multithreaded micro-ROS app.
