[KISEMA-1600] Incomplete GO Conditional Merger breaks Assignment Order

[fabianheyer]

[Issue KISEMA-1600 migrated from JIRA, first reported on 2020-08-14]

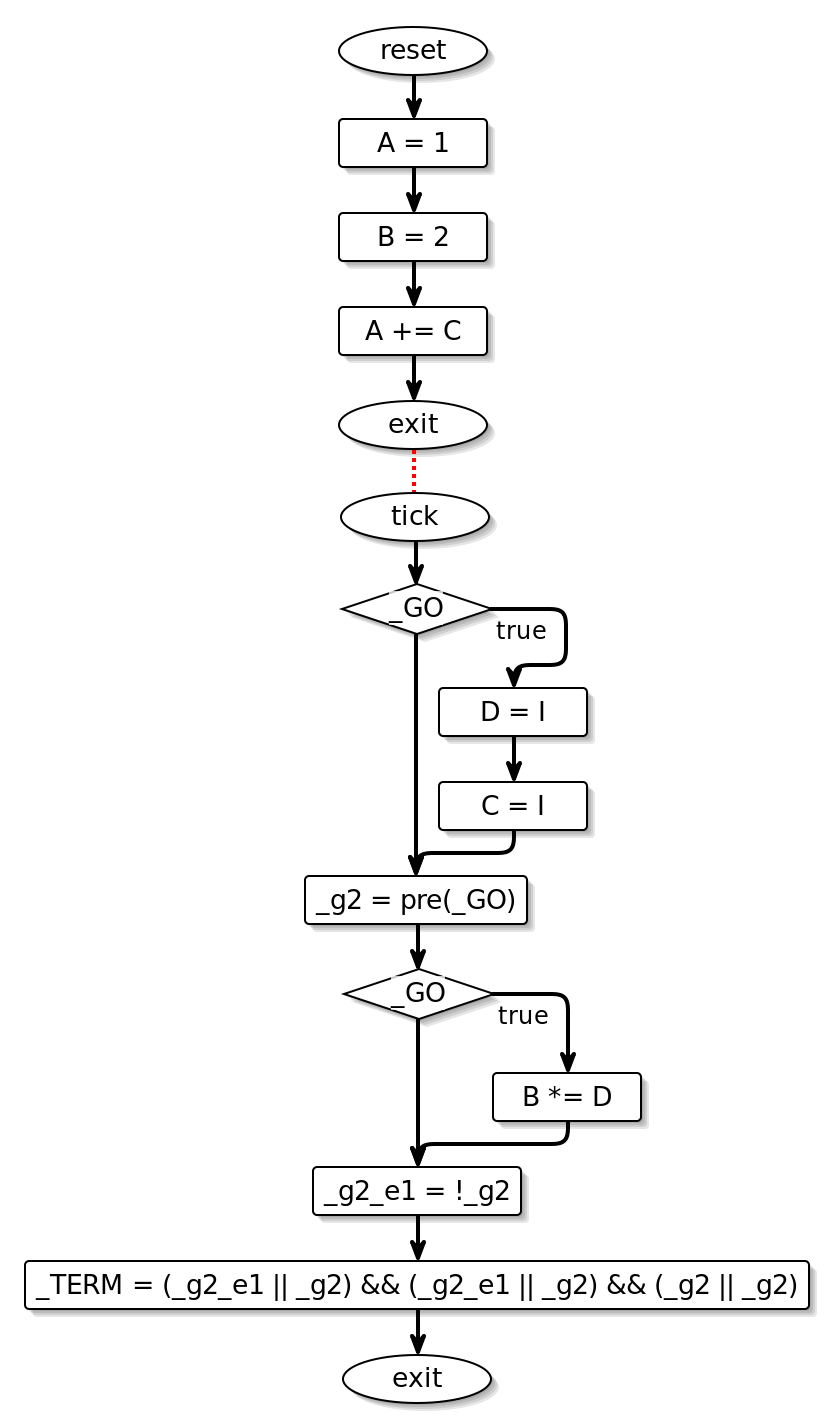

In the following example the GO conditionals are only partially merged and moved into reset resulting in an invalid assignment order and wrong behavior.

scchart Main {
  input int I
  output int A, B, C, D

  initial state Init ""
  immediate do A = 1; B = 2
  go to Compute

  state Compute "" {
    region {
      initial state A ""
      immediate do D = I
      go to B

      connector state B
      immediate do A += C
      go to C

      state C ""
      go to D
      final state D ""
    }
    region {
      initial state A ""
      immediate do C = I
      go to B

      connector state B
      immediate do B *= D
      go to C

      state C ""
      go to D
      final state D ""
    }
  }
  join to End

  final state End ""

}
