all net classes have their layers set to the last selected layer

[fopinski]

• [ ] What version of freerouting are you using? 1.6.2
• [ ] On what platform did you run it? Windows, Linux, MacOS? 32-bit or 64-bit? Windows
• [ ] What type of file are you working with? Can you attach the actual (DSN) file? DSN file from Kicad, don't like to share
• [ ] Did you use any command line arguments? No

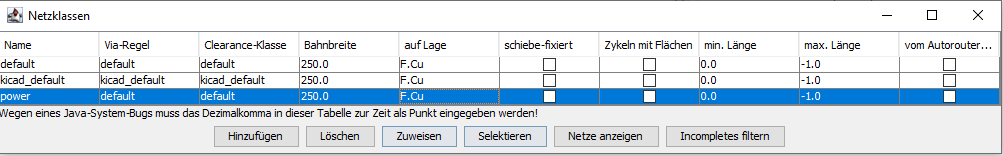

• [ ] Can you post a screenshot of the problem?
• [ ] Can you include the latest, related log entries from the .log file? freerouting.log
• [ ] Please list the detailed steps to reproduce the problem Open net class -> select layer -> start auto route -> stop auto route -> all net classes have their layers set to the last selected layer I also changed the *.rules file without any luck. The auto route process does not use the selected layer but all of them.
• [ ] What would you expect freerouting to do in this situation? only change the layer for the net class that was modified
• [ ] Is fixing this issue critical for your work? Of course.

[fopinski]

It works if the *.rules file is set to the desired configuration before I load the dsn file. It's ok when I click on autorouter right after the load of the dsn (and the confirmation to load the config file) until I stop and check the net class config in the gui. Then it's messed up again.

[andrasfuchs]

Thanks @fopinski for the details! I doubt I will have the time to fix this in the next few months, but as always, pull requests are more than welcome!

[fopinski]

No need to hurry, I can use the workaround. Unfortunately I'm not able to fix it myself.

[github-actions[bot]]

This issue is stale because it has been inactive for 60 days. Remove stale label or comment or this will be closed in 7 days.
