Image fields don't work in velocity with dotAssets

[wezell]

1. Create a content type testing
   • Title
   • Image (Image Field)
2. Create a content object of testing - use DnD to upload a dotAsset to the field
3. run this against your dotCMS instance and you can see that the velocity content object is unable to use/retrieve the image field.

curl -u [email protected]:admin -XGET https://demo.dotcms.com/api/vtl/dynamic/  \
-H "Content-Type:text/plain" \
-d '
    #set($test = $dotcontent.pull("+contentType:testing",  100,"").get(0))
    fails: $test.image
    fails: $test.getRaw("image")
    works: $test.contentObject.image
'

Output:

    fails: $test.image
    fails: $test.getRaw("image")
    works: fbdf777876229e952939a9dff93c3932

Bonus crappiness - the info is messed up for the image field as well:

[wezell]

dupe: #22702

[nollymar]

PR: #22710

[alfredo-dotcms]

console output

broken img url

[alfredo-dotcms]

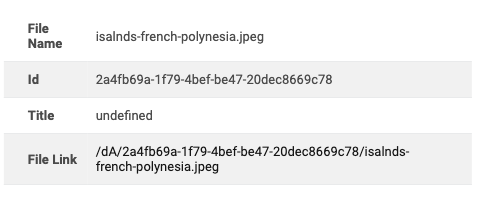

the console is good the img url in the UI is broken if it is Not published, but after the content is published the url is working *the Title is undefined after being published

@wezell is that expected?

[fabrizzio-dotCMS]

here is the fix for the displayed title https://github.com/dotCMS/core/pull/22831

[fabrizzio-dotCMS]

I also verified that the VTL renders the expected values that were not present before

[wezell]

Even though Alfredo's question above is valid and probably an issue, that was not the point of the original card. Passing for now and we can revisit in the future.

[nollymar]

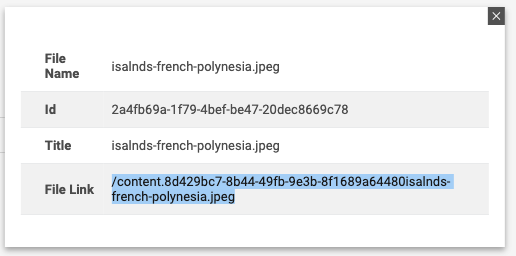

Internal QA: The problem with the title has been fixed:

and after running the curl test I get this output that is expected:

curl -u [email protected]:2#GemAb?DsHzp8my -XGET http://localhost:8080/api/vtl/dynamic/  \
> -H "Content-Type:text/plain" \
> -d '
>     #set($test = $dotcontent.pull("+contentType:testing",  100,"").get(0))
>     fails: $test.image
>     fails: $test.getRaw("image")
>     works: $test.contentObject.image
> '

    fails: com.dotcms.rendering.velocity.viewtools.content.BinaryMap@7a64a7e5[name=isalnds-french-polynesia.jpeg,size=100.4 K,rawUri=/contentAsset/raw-data/2a4fb69a-1f79-4bef-be47-20dec8669c78/asset,resizeUri=/contentAsset/image/2a4fb69a-1f79-4bef-be47-20dec8669c78/asset/filter/Resize,thumbnailUri=/contentAsset/image/2a4fb69a-1f79-4bef-be47-20dec8669c78/asset/filter/Thumbnail,file=/Users/nollymarlonga/workspace-dotcms/tomcat9/webapps/ROOT/assets/8/d/8d429bc7-8b44-49fb-9e3b-8f1689a64480/asset/isalnds-french-polynesia.jpeg]
    fails: com.dotcms.rendering.velocity.viewtools.content.BinaryMap@7a64a7e5[name=isalnds-french-polynesia.jpeg,size=100.4 K,rawUri=/contentAsset/raw-data/2a4fb69a-1f79-4bef-be47-20dec8669c78/asset,resizeUri=/contentAsset/image/2a4fb69a-1f79-4bef-be47-20dec8669c78/asset/filter/Resize,thumbnailUri=/contentAsset/image/2a4fb69a-1f79-4bef-be47-20dec8669c78/asset/filter/Thumbnail,file=/Users/nollymarlonga/workspace-dotcms/tomcat9/webapps/ROOT/assets/8/d/8d429bc7-8b44-49fb-9e3b-8f1689a64480/asset/isalnds-french-polynesia.jpeg]
    works: 2a4fb69a-1f79-4bef-be47-20dec8669c78

[bryanboza]

Fixed, tested on release-22.09 // Docker // FF

Following the provided steps I'm getting the same results that the @nollymar's comment
