Proposal: Events property for AWS::SQS::Queue to implicitly define an API Gateway
Description:
It would be really handy the possibility to define an Event as a property when declaring an SQS resource, in order to implicitly define an API Gateway that sends the payload as a message into the queue.
This is a simple SAM Template example of what I'm talking about:
MyProjectQueue:
Type: AWS::SQS::Queue
Properties:
Events:
MyProjectApi:
Type: Api
Properties:
Path: /myproject/push
Method: post
Current Behavior
Of course, being Events not supported by SQS Queue, the deploy fails and I can see the following error using the command aws cloudformation describe-stack-events --stack-name myproject-stack
STACKEVENTS
MyProjectQueue-CREATE_FAILED-2018-10-30T16:33:29.764Z
MyProjectQueue
CREATE_FAILED
Encountered unsupported property Events AWS::SQS::Queue arn:aws:cloudformation:eu-west-1:<MY_AWS>:stack/myproject-stack/<GIUD>
myproject-stack 2018-10-30T16:33:29.764Z

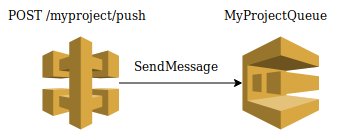

Expected result: The expected result would be
Including the relevant policies. Exactly like it happens for a Lambda function
@zeroastro I have an example of how to do this in the Swagger doc on my GitHub:
https://github.com/brysontyrrell/Serverless-Examples/blob/master/API-Gateway-Integrated-SQS-Queue/template.yaml
AWSTemplateFormatVersion: 2010-09-09
Transform: AWS::Serverless-2016-10-31
Description: >-
Create an API Gateway integrated with an SQS queue that is processed by a
Lambda function as messages are populated.
Resources:
ApiQueue:
Type: AWS::SQS::Queue
QueueApiGatewayRole:
Type: AWS::IAM::Role
Properties:
Path: "/"
AssumeRolePolicyDocument:
Version: 2012-10-17
Statement:
- Effect: Allow
Principal:
Service:
- apigateway.amazonaws.com
Action: sts:AssumeRole
ManagedPolicyArns:
- arn:aws:iam::aws:policy/service-role/AmazonAPIGatewayPushToCloudWatchLogs
Policies:
- PolicyName: ApiQueuePolicy
PolicyDocument:
Version: '2012-10-17'
Statement:
- Effect: Allow
Action:
- sqs:ReceiveMessage
- sqs:SendMessage
Resource: !GetAtt ApiQueue.Arn
QueueApiGateway:
Type: AWS::Serverless::Api
Properties:
StageName: Prod
DefinitionBody:
swagger: "2.0"
info:
title: !Ref AWS::StackName
paths:
"/":
post:
consumes:
- "application/json"
produces:
- "application/json"
responses:
"200":
description: "200 response"
schema:
$ref: "#/definitions/Empty"
x-amazon-apigateway-integration:
credentials: !GetAtt QueueApiGatewayRole.Arn
uri: !Sub "arn:aws:apigateway:${AWS::Region}:sqs:path//"
responses:
default:
statusCode: "200"
requestParameters:
integration.request.header.Content-Type: "'application/x-www-form-urlencoded'"
requestTemplates:
application/json: !Sub "Action=SendMessage##\n&QueueUrl=$util.urlEncode('${ApiQueue}')##\n\
&MessageBody=$util.urlEncode($input.body)##\n"
passthroughBehavior: "never"
httpMethod: "POST"
type: "aws"
definitions:
Empty:
type: "object"
title: "Empty Schema"
QueueProcessor:
Type: AWS::Serverless::Function
Description: Processes messages from the SQS Queue.
Properties:
CodeUri: ./src/queue_processor
Handler: queue_processor.lambda_handler
Runtime: python3.6
Timeout: 30
ReservedConcurrentExecutions: 10
Events:
QueueMessages:
Type: SQS
Properties:
Queue: !GetAtt ApiQueue.Arn
BatchSize: 10
@brysontyrrell thank you for the solution posted, I've done something similar, that's why I came up with this proposal which I believe could be very handy
+1 on this. We are building a new project with SAM where the main entry point is from a webhook request from a popular messaging service. The service expects responses within 1 second so being able to have API Gateway respond while the message gets queued for processing is something we're looking in to implementing. This proposal would be extremely helpful.
