修复oceanbasev10writer遇到带小版本号的OB处理异常
com.alibaba.datax.plugin.writer.oceanbasev10writer.task.ConcurrentTableWriterTask的136行。遇到有小版本好的OB会抛异常例如3.2.3.1 建议需改为: String version = config.getString(Config.OB_VERSION); String[] versionArray = version.split("\."); String majorVersion = versionArray[0] + versionArray[1]; if ((Integer.valueOf(majorVersion) >= 21)) { isOb2 = true; }
Error:使用DataX中oceanbasev10writer插件向OceanBase3.2.3.0中写数据报错：java.lang.NumberFormatException: multiple points
使用版本：DataX-datax_v202209
使用的配置文件：job.json
{
"job": {
"setting": {
"speed": {
"byte":10485760
},
"errorLimit": {
"record": 0,
"percentage": 0.02
}
},
"content": [
{
"reader": {
"name": "streamreader",
"parameter": {
"column" : [
{
"value": "DataX",
"type": "string"
},
{
"value": 19890604,
"type": "long"
},
{
"value": "1989-06-04 00:00:00",
"type": "date"
},
{
"value": true,
"type": "bool"
},
{
"value": "test",
"type": "bytes"
}
],
"sliceRecordCount": 100000
}
},
"writer": {
"name": "oceanbasev10writer",
"parameter": {
"obWriteMode": "insert",
"column": [
"*"
],
"preSql": [
"truncate table testfordatax"
],
"connection": [
{
"jdbcUrl": "||_dsc_ob10_dsc_||obcluster:test_tenant||_dsc_ob10_dsc_||jdbc:oceanbase://192.168.100.15:2883/test?useLocalSessionState=true&allowBatch=true&allowMultiQueries=true&rewriteBatchedStatements=true",
"table": [
"testfordatax"
]
}
],
"username": "test",
"password":"test#",
"writerThreadCount":10,
"batchSize": 1000,
"memstoreThreshold": "0.9"
}
}
}
]
}
}
错误日志：
Class:com.alibaba.datax.plugin.writer.oceanbasev10writer.task.ConcurrentTableWriterTask
16:57:02.080 [0-0-1-reader] DEBUG c.a.d.c.t.runner.ReaderRunner - task reader starts to do prepare ...
16:57:02.082 [0-0-1-reader] DEBUG c.a.d.c.t.runner.ReaderRunner - task reader starts to read ...
16:57:02.085 [0-0-1-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - configure url is unavailable, use obclient for connections.
16:57:02.208 [0-0-4-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - this is oracle compatible mode, change database to SHORTINSAPP, table to TESTFORDATAX
16:57:02.209 [0-0-4-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - Disable partition calculation feature.
16:57:02.327 [0-0-1-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - this is oracle compatible mode, change database to SHORTINSAPP, table to TESTFORDATAX
16:57:02.329 [0-0-1-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - Disable partition calculation feature.
16:57:02.434 [0-0-3-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - this is oracle compatible mode, change database to SHORTINSAPP, table to TESTFORDATAX
16:57:02.434 [0-0-3-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - Disable partition calculation feature.
16:57:02.535 [0-0-2-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - this is oracle compatible mode, change database to SHORTINSAPP, table to TESTFORDATAX
16:57:02.536 [0-0-2-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - Disable partition calculation feature.
16:57:03.291 [0-0-0-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - this is oracle compatible mode, change database to SHORTINSAPP, table to TESTFORDATAX
16:57:03.292 [0-0-0-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - Disable partition calculation feature.
16:57:03.701 [0-0-2-writer] INFO c.a.d.p.r.w.CommonRdbmsWriter$Task - write mode: insert
16:57:03.701 [0-0-2-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - writeRecordSql :INSERT INTO TESTFORDATAX (toolname,appid,OPERATEDATE,isfinished) VALUES(?,?,?,?)
16:57:03.711 [0-0-2-writer] ERROR c.a.d.c.t.runner.WriterRunner - Writer Runner Received Exceptions:
java.lang.NumberFormatException: multiple points
at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:1914) ~[na:1.8.0_282]
at sun.misc.FloatingDecimal.parseFloat(FloatingDecimal.java:122) ~[na:1.8.0_282]
at java.lang.Float.parseFloat(Float.java:451) ~[na:1.8.0_282]
at java.lang.Float.valueOf(Float.java:416) ~[na:1.8.0_282]
at com.alibaba.datax.plugin.writer.oceanbasev10writer.task.ConcurrentTableWriterTask.init(ConcurrentTableWriterTask.java:136) ~[oceanbasev10writer-0.0.1-SNAPSHOT.jar:na]
at com.alibaba.datax.plugin.writer.oceanbasev10writer.OceanBaseV10Writer$Task.init(OceanBaseV10Writer.java:222) ~[oceanbasev10writer-0.0.1-SNAPSHOT.jar:na]
at com.alibaba.datax.core.taskgroup.runner.WriterRunner.run(WriterRunner.java:44) ~[classes/:na]
at java.lang.Thread.run(Thread.java:748) [na:1.8.0_282]
16:57:03.711 [0-0-2-writer] DEBUG c.a.d.c.t.runner.WriterRunner - task writer starts to do destroy ...
Exception in thread "taskGroup-0" com.alibaba.datax.common.exception.DataXException: Code:[Framework-13], Description:[DataX插件运行时出错, 具体原因请参看DataX运行结束时的错误诊断信息 .]. - java.lang.NumberFormatException: multiple points
at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:1914)
at sun.misc.FloatingDecimal.parseFloat(FloatingDecimal.java:122)
at java.lang.Float.parseFloat(Float.java:451)
at java.lang.Float.valueOf(Float.java:416)
at com.alibaba.datax.plugin.writer.oceanbasev10writer.task.ConcurrentTableWriterTask.init(ConcurrentTableWriterTask.java:136)
at com.alibaba.datax.plugin.writer.oceanbasev10writer.OceanBaseV10Writer$Task.init(OceanBaseV10Writer.java:222)
at com.alibaba.datax.core.taskgroup.runner.WriterRunner.run(WriterRunner.java:44)
at java.lang.Thread.run(Thread.java:748)
- java.lang.NumberFormatException: multiple points
at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:1914)
at sun.misc.FloatingDecimal.parseFloat(FloatingDecimal.java:122)
at java.lang.Float.parseFloat(Float.java:451)
at java.lang.Float.valueOf(Float.java:416)
at com.alibaba.datax.plugin.writer.oceanbasev10writer.task.ConcurrentTableWriterTask.init(ConcurrentTableWriterTask.java:136)
at com.alibaba.datax.plugin.writer.oceanbasev10writer.OceanBaseV10Writer$Task.init(OceanBaseV10Writer.java:222)
at com.alibaba.datax.core.taskgroup.runner.WriterRunner.run(WriterRunner.java:44)
at java.lang.Thread.run(Thread.java:748)
at com.alibaba.datax.common.exception.DataXException.asDataXException(DataXException.java:48)
at com.alibaba.datax.core.taskgroup.TaskGroupContainer.start(TaskGroupContainer.java:195)
at com.alibaba.datax.core.taskgroup.runner.TaskGroupContainerRunner.run(TaskGroupContainerRunner.java:24)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
Caused by: java.lang.NumberFormatException: multiple points
at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:1914)
at sun.misc.FloatingDecimal.parseFloat(FloatingDecimal.java:122)
at java.lang.Float.parseFloat(Float.java:451)
at java.lang.Float.valueOf(Float.java:416)
at com.alibaba.datax.plugin.writer.oceanbasev10writer.task.ConcurrentTableWriterTask.init(ConcurrentTableWriterTask.java:136)
at com.alibaba.datax.plugin.writer.oceanbasev10writer.OceanBaseV10Writer$Task.init(OceanBaseV10Writer.java:222)
at com.alibaba.datax.core.taskgroup.runner.WriterRunner.run(WriterRunner.java:44)
... 1 more
问题分析/猜想：
通过查看报错日志，在WriterRunner.java:44->OceanBaseV10Writer.java:222->ConcurrentTableWriterTask.java:136等关键位置打断点追踪异常，最终定位到代码136行抛出了异常：java.lang.NumberFormatException: multiple points。

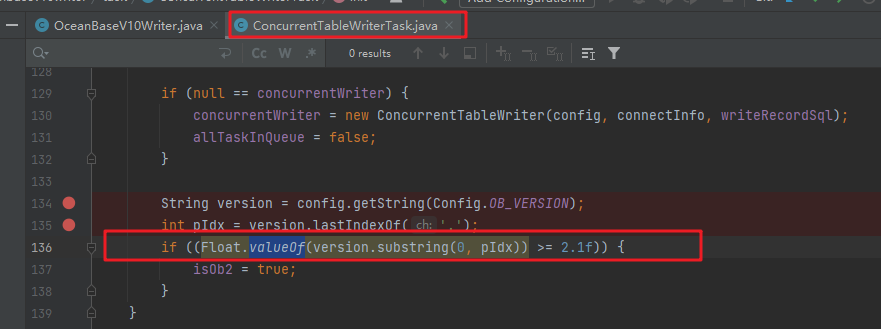

查看源代码136行：
if ((Float.valueOf(version.substring(0, pIdx)) >= 2.1f)) {
isOb2 = true;
}
观察上下文代码，这段代码目的是要比较OceanBase的版本号是否>=2.1,进而将OBflag重置为ture。猜想Float.valueOf（String a）并不能将类似3.2.3.0这样包含多个点的字符串转换成一个Float。此处使用Float.valueOf(String a)进行转换，未考虑到参数可能包含多个点，会触发multiple points 异常，进而引起无法进行OceanBase版本号比较的错误。（正确使用方法见文末参考链接）
复现/验证：
为了验证猜想，将if语句中的类型转换语句提取并做了问题复现及验证：
建议/修复：

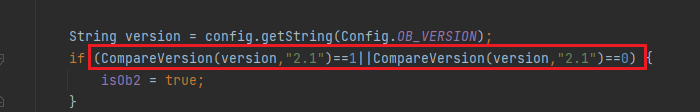

确认问题是类型参数转换问题后，尝试采用自定义版本号比较方法进行修复
修复验证结果：
算法验证：
修复后验证：
18:55:29.647 [0-0-0-writer] INFO c.a.d.p.w.o.task.ColumnMetaCache - fetch columnMeta of table TESTFORDATAX success
18:55:29.648 [0-0-0-writer] DEBUG c.a.d.p.w.o.t.ConcurrentTableWriterTask - fail to calculate parition id, just put into the default buffer.
18:55:29.810 [0-0-0-writer] INFO c.a.d.p.r.w.CommonRdbmsWriter$Task - isMemstoreFull=false
18:55:29.810 [0-0-0-writer] INFO c.a.d.p.w.o.t.ConcurrentTableWriterTask - ConcurrentTableWriter has put all task in queue, queueSize = 0, total = 1, finished = 1
18:55:29.810 [0-0-0-writer] DEBUG c.a.d.p.w.o.t.ConcurrentTableWriterTask - wait all InsertTask finished ...
18:55:30.532 [0-insertTask-21] DEBUG c.a.d.p.w.o.task.InsertTask - not more task, thread exist ...
18:55:30.532 [0-insertTask-21] DEBUG c.a.d.p.w.o.task.InsertTask - Thread exist...
18:55:32.326 [0-0-0-writer] DEBUG c.a.d.c.t.runner.WriterRunner - task writer starts to do post ...
18:55:43.912 [0-0-0-writer] DEBUG c.a.d.c.t.runner.WriterRunner - task writer starts to do destroy ...
18:55:43.912 [job-0] DEBUG c.a.d.c.j.s.AbstractScheduler - com.alibaba.datax.core.statistics.communication.Communication@1725dc0f[
counter={writeSucceedRecords=2, readSucceedRecords=1, totalErrorBytes=0, writeSucceedBytes=24, byteSpeed=0, totalErrorRecords=0, recordSpeed=0, waitReaderTime=0, writeReceivedBytes=24, waitWriterTime=50700, percentage=0.0, totalReadRecords=1, writeReceivedRecords=2, readSucceedBytes=24, totalReadBytes=24}
state=RUNNING
throwable=<null>
timestamp=1666608943911
message={}
]
18:55:43.912 [job-0] INFO c.a.d.c.s.c.c.j.StandAloneJobContainerCommunicator - Total 1 records, 24 bytes | Speed 1B/s, 0 records/s | Error 0 records, 0 bytes | All Task WaitWriterTime 0.000s | All Task WaitReaderTime 0.000s | Percentage 0.00%
18:55:44.014 [taskGroup-0] INFO c.a.d.c.taskgroup.TaskGroupContainer - taskGroup[0] taskId[0] is successed, used[71243]ms
18:55:44.014 [taskGroup-0] INFO c.a.d.c.taskgroup.TaskGroupContainer - taskGroup[0] completed it's tasks.
18:55:53.927 [job-0] DEBUG c.a.d.c.j.s.AbstractScheduler - com.alibaba.datax.core.statistics.communication.Communication@3911c2a7[
counter={writeSucceedRecords=2, readSucceedRecords=1, totalErrorBytes=0, writeSucceedBytes=24, byteSpeed=0, totalErrorRecords=0, recordSpeed=0, waitReaderTime=0, writeReceivedBytes=24, stage=1, waitWriterTime=50700, percentage=1.0, totalReadRecords=1, writeReceivedRecords=2, readSucceedBytes=24, totalReadBytes=24}
state=SUCCEEDED
throwable=<null>
timestamp=1666608953927
message={}
]
18:55:53.929 [job-0] INFO c.a.d.c.s.c.c.j.StandAloneJobContainerCommunicator - Total 1 records, 24 bytes | Speed 0B/s, 0 records/s | Error 0 records, 0 bytes | All Task WaitWriterTime 0.000s | All Task WaitReaderTime 0.000s | Percentage 100.00%
18:55:53.929 [job-0] INFO c.a.d.c.j.s.AbstractScheduler - Scheduler accomplished all tasks.
18:55:53.929 [job-0] DEBUG c.a.datax.core.job.JobContainer - jobContainer starts to do post ...
18:55:53.930 [job-0] INFO c.a.datax.core.job.JobContainer - DataX Writer.Job [oceanbasev10writer] do post work.
18:55:53.931 [job-0] INFO c.a.datax.core.job.JobContainer - DataX Reader.Job [oceanbasev10reader] do post work.
18:55:53.931 [job-0] DEBUG c.a.datax.core.job.JobContainer - jobContainer starts to do postHandle ...
18:55:53.932 [job-0] INFO c.a.datax.core.job.JobContainer - DataX jobId [0] completed successfully.
18:55:53.936 [job-0] INFO c.a.d.c.container.util.HookInvoker - No hook invoked, because base dir not exists or is a file: F:\Code\DataX-datax_v202209\target\datax\datax\hook
18:55:53.939 [job-0] INFO c.a.datax.core.job.JobContainer -
[total cpu info] =>
averageCpu | maxDeltaCpu | minDeltaCpu
-1.00% | -1.00% | -1.00%
[total gc info] =>
NAME | totalGCCount | maxDeltaGCCount | minDeltaGCCount | totalGCTime | maxDeltaGCTime | minDeltaGCTime
PS MarkSweep | 0 | 0 | 0 | 0.000s | 0.000s | 0.000s
PS Scavenge | 1 | 1 | 1 | 0.005s | 0.005s | 0.005s
18:55:53.939 [job-0] INFO c.a.datax.core.job.JobContainer - PerfTrace not enable!
18:55:53.940 [job-0] INFO c.a.d.c.s.c.c.j.StandAloneJobContainerCommunicator - Total 1 records, 24 bytes | Speed 0B/s, 0 records/s | Error 0 records, 0 bytes | All Task WaitWriterTime 0.000s | All Task WaitReaderTime 0.000s | Percentage 100.00%
18:55:53.942 [job-0] INFO c.a.datax.core.job.JobContainer -
任务启动时刻 : 2022-10-24 18:54:31
任务结束时刻 : 2022-10-24 18:55:53
任务总计耗时 : 82s
任务平均流量 : 0B/s
记录写入速度 : 0rec/s
读出记录总数 : 1
读写失败总数 : 0
Disconnected from the target VM, address: '127.0.0.1:58873', transport: 'socket'
Process finished with exit code 0
参考：
rt.jar:com.java.long.Float.valueOf(String a)使用说明：
https://www.runoob.com/java/number-valueof.html
http://www.manongjc.com/detail/30-wdowdwvkfxfqolx.html
Java版本号比较算法：
https://stackoverflow.com/questions/198431/how-do-you-compare-two-version-strings-in-java#
https://www.baeldung.com/java-comparing-versions
