Trying to upload to OSH Park, no board outline in Gerbers.
This is the error I get.
Failure (critical): We couldn't find the board outline.
Thank you,
Hi! I can’t remember which PCB house I exported those Gerbers for, but I think it was using the settings/script provided by JLCPCB.
It was many years since I used OSHPark but I do believe They accept eagle files directly (and they will generate the Gerber from that on their side) I’d try that method and upload the Eagle, and double check that the board looks ok in their preview.
alternatively export Gerbers from The Eagle file yourself using OSHPark specifications, they probable have scripts available.
Cheers, —Anders
Skickat från min iPhone
17 nov. 2021 kl. 18:09 skrev Rory-McMahon @.***>:
This is the error I get.
Failure (critical): We couldn't find the board outline.
Thank you,
— You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub, or unsubscribe. Triage notifications on the go with GitHub Mobile for iOS or Android.

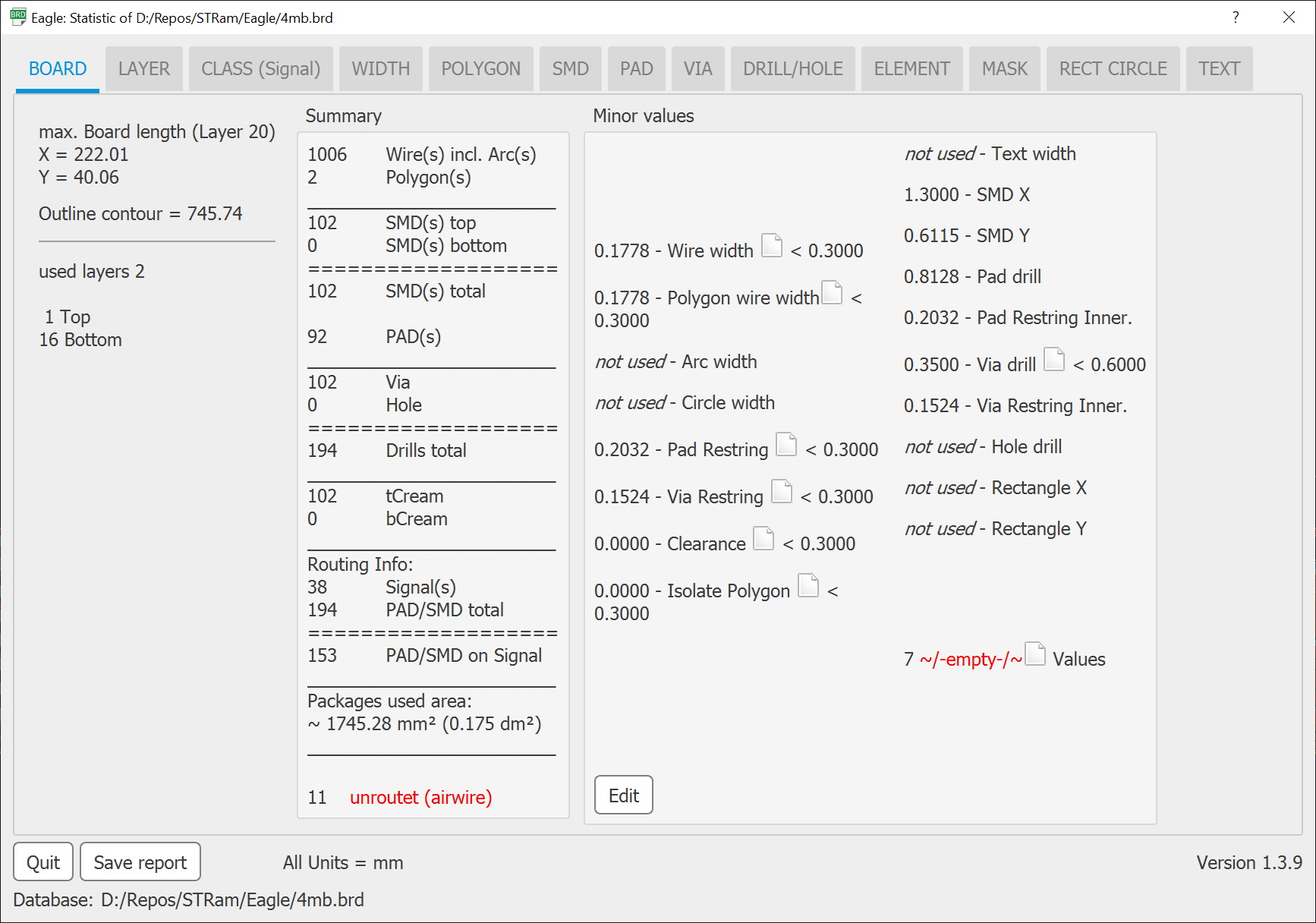

Tried exporting from Gerber files from Eagle CAD 9.6.2 for upload to JLPCB and the board dimension are empty. However, using the "Statistics" view in Eagle, I was able to find out the board is 222.01mm x 40.06mm, so I entered that into JLPCB's interface. Hopefully this is correct. I'll post my findings when I receive the boards.
.
