Hardware generation works in main branch with Vivado and Vivado HLS 2020.1 but not in freature/vitis_hls or feature/vitis_hls_2021.2

[haoxi1999]

Quick summary

Hi. I've been unable to generate hardware for my neural network model using FINN branches for VItis HLS (feature/vitis_hls or feature/vitis_hls_2021.2 with Vitis/Vivado tools 2021.2). I'm migrating to feature/vitis_hls branches as I'm using KV260 SOM. While my project can be generated with main branch and Vivado tools 2020.1, attempts of generating the hardware using vitis_hls branch failed at the step of CreateStitchedIP when executing the ZynqBuild flow.

Details

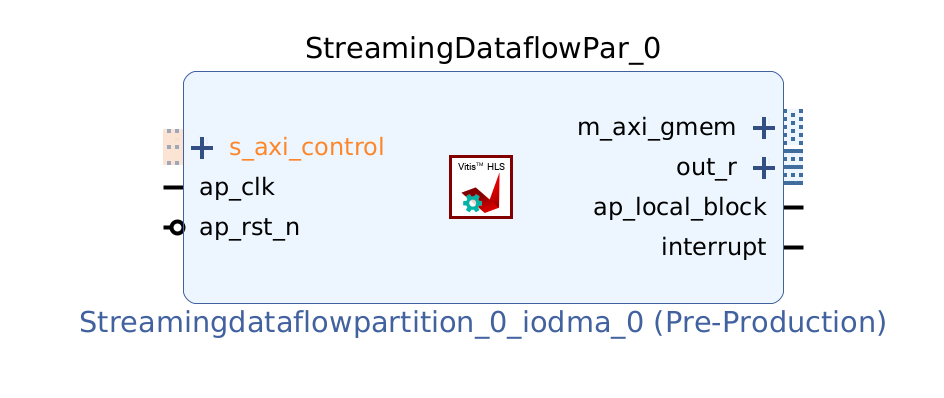

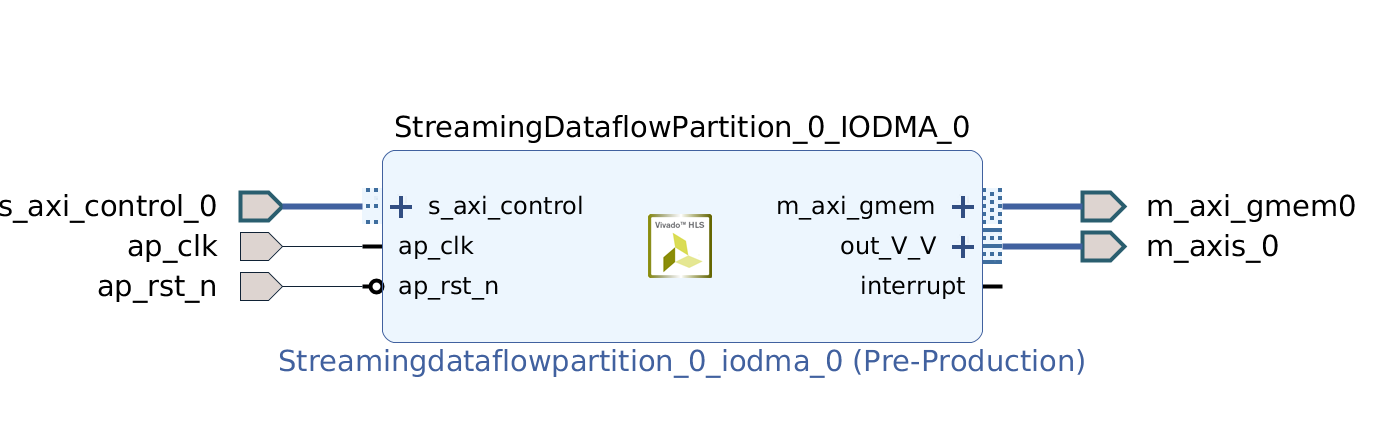

Looking at the generated Vivado and Vitis HLS projects, I have noticed the vivado_stitch_proj_xxxxxxxx project fails at the step of setting property of the out_V port of the block design. Inspecting the StreamingDataflowPartition IP generated by Vitis HLS, I noticed that there's no out_V port from the IP block generated by Vitis HLS. Here's the difference of the IP blocks generated by Vivado HLS and Vitis HLS shown side by side.

Vivado HLS: Vitis HLS

The log of the Vivado stitching project is attached. vivado.log

Possible fix

The tcl file in the generated Vivado stiching project may need to be updated in for the Vitis HLS IP blocks.

Thanks.

[auphelia]

Hi @haoxi1999 , sorry for the late reply. Can you try using the new FINN release for your project and check if it is working now?

[auphelia]

I am closing this issue due to inactivity. Please reopen or create a new issue if you are facing more problems. Also please note that we have KV260 support with the newest FINN release, I hope this solves your issue!
