not an issue: WiFi Pinapple Nano Clone - look alike

Open careyer opened this issue 7 years ago • 11 comments

Hi,

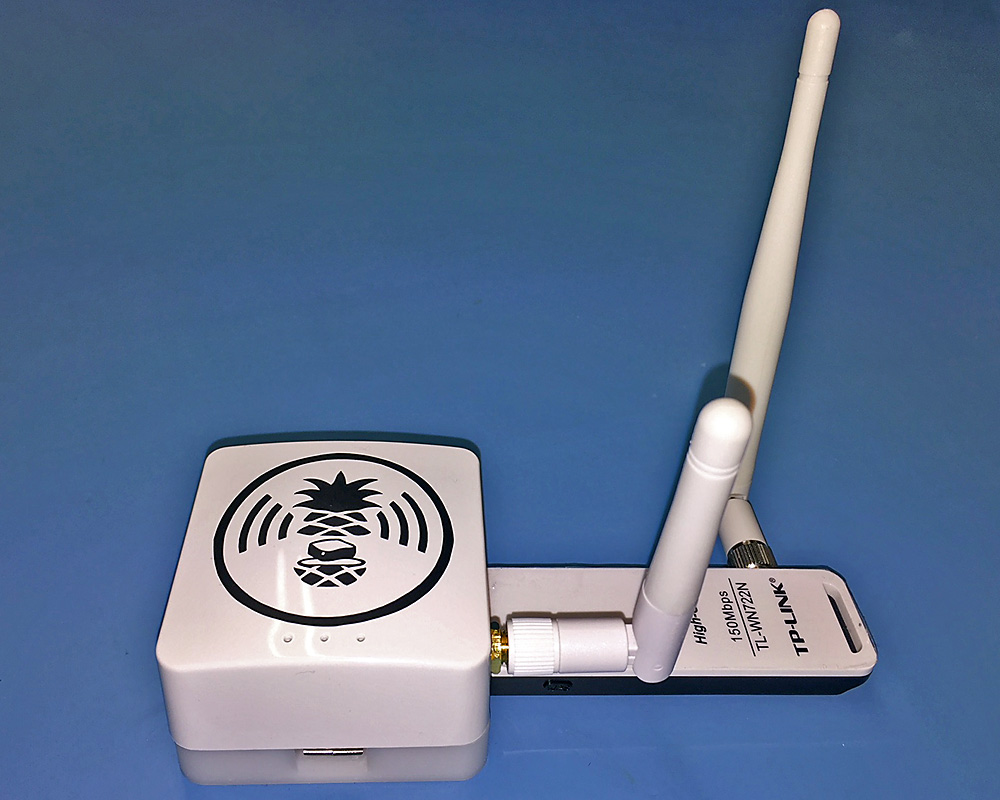

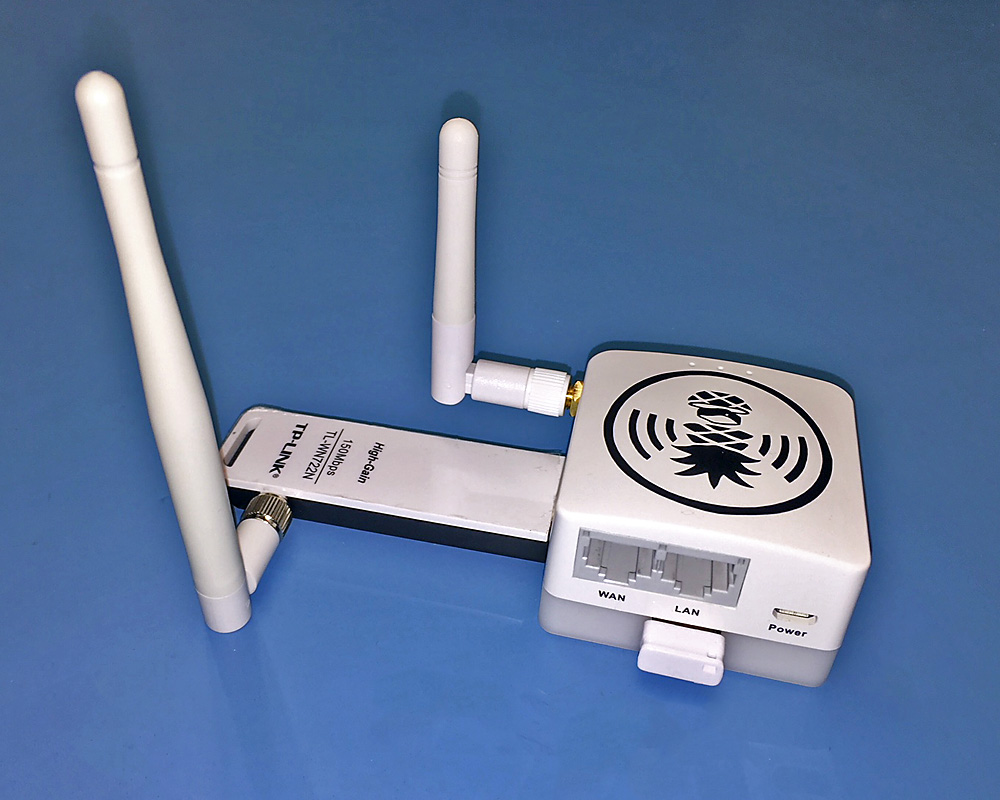

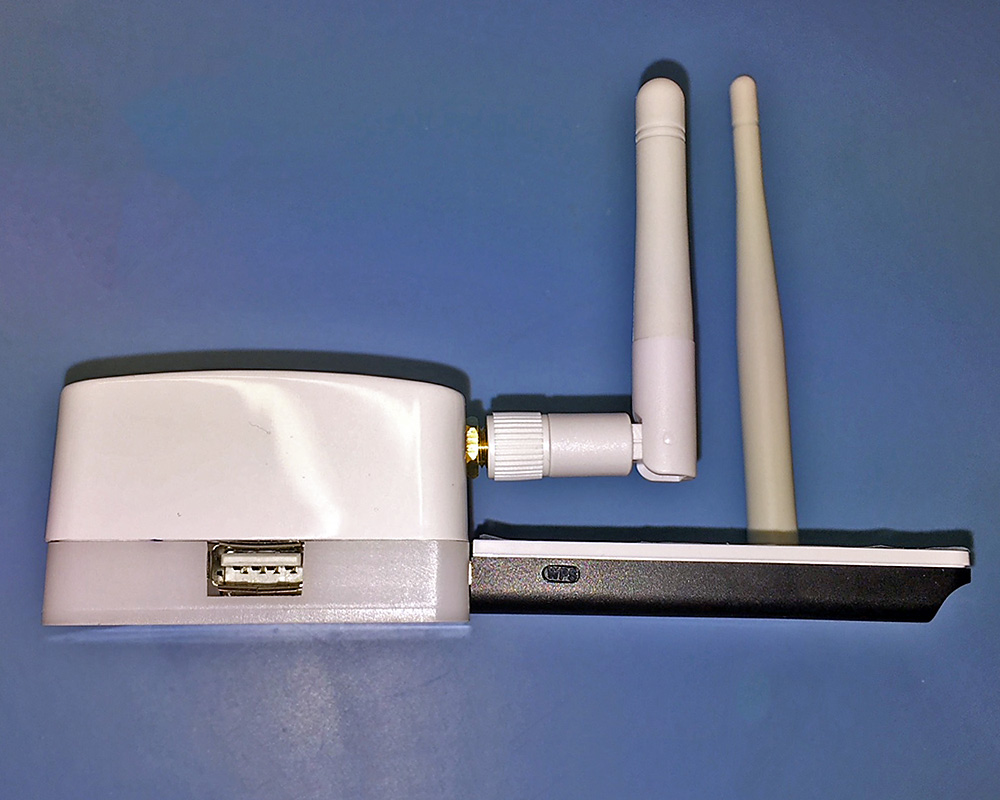

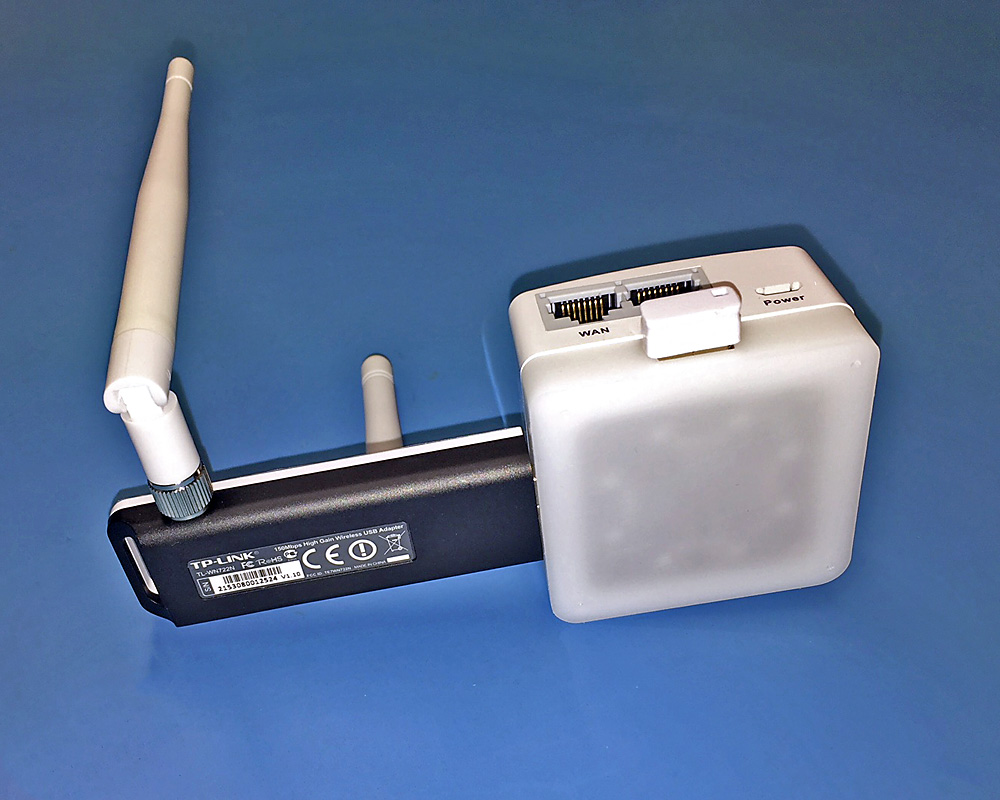

just wanted to share how a WiFi-Pinapple Nano Clone can look alike. Added a 4 Port USB Hub with a custom CNC milled enclosure right under the AR150. Looks clean & neat. The TP-Link 722N and a 32GB USB-Stick fit like a charm. Two more Ports to go! =D The USB-Hub enclosure is milled from POM. The logo was cutted via a cutting plotter.

Thank you to everyone contributing to this awesome project!

careyer avatar Mar 31 '18 18:03 careyer

wow, looks nice

rickyhoots avatar Apr 03 '18 15:04 rickyhoots

do you have a link to that 32gb usb ? Can you also show how you soldered the USB hub to it? thanks!

bruvv avatar Apr 05 '18 17:04 bruvv

do you have a link to that 32gb usb ?

Just search for "32 GB USB Stick Nano" on ebay. I got this one: https://www.ebay.de/itm/Mini-USB-Stick-32-GB-Nano-USB-2-0-Highspeed-Speicherstick-32GB-Mini-Klein-weiss-/131604149145?hash=item1ea437f399

Can you also show how you soldered the USB hub to it? thanks!

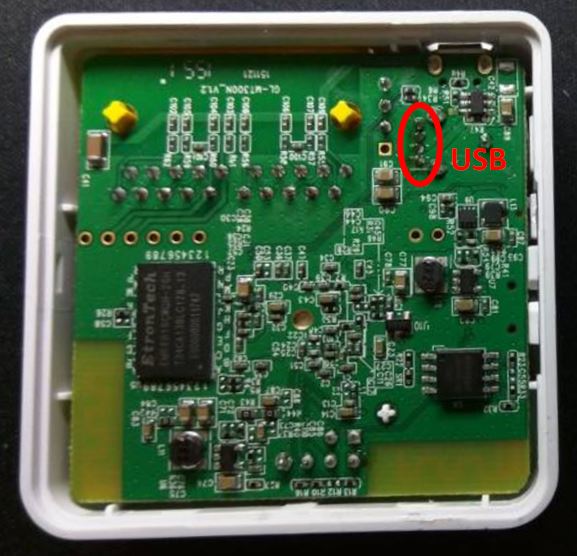

You just need to solder the 4 USB wires (5V, D+, D-, GND) to the bottom side of the AR150 where its original USB socket is soldered to the PCB.

careyer avatar Apr 06 '18 07:04 careyer

Nice build 👍 Did you test the firmware deeply by any chance? Wondering if all areas are working ok since I didn't have time to play with it...

SecurityAddicted avatar Apr 07 '18 13:04 SecurityAddicted

Everything is working fine. Been testing it for a week

bruvv avatar Apr 07 '18 13:04 bruvv

Same for me... everything working as intended! Could not find any bugs other that the ones the Original also suffers from. See #12. Terrific work!

careyer avatar Apr 12 '18 07:04 careyer

Pretty cool idea! Made my own with help of a 3d printer! The only step left is improving the cooling (gets a bit hot) :)

3dmodel

img_20180625_202337

deantonious avatar Jun 25 '18 18:06 deantonious

Very nicely done! Imitation is the sincerest form of flattery! =D Why exactly do you use three antennae? Would you mind taking a picture of the inside of the case and share the STL files maybe? Hopefully the latest firmware will be supported soon

careyer avatar Jun 26 '18 07:06 careyer

I used a USB hub I got on the 2017 NYMF and designed the enclosure for it (the two antennas are meant to be used in case you're using one in monitor mode or deploying an attack):


Here's the enclosure file: expansion_case.zip

deantonious avatar Jul 01 '18 17:07 deantonious

Looks awesome. Thanks for sharing.... what kind of USB do you use that it runs so hot? I like the layout of if. Do you have a link?

careyer avatar Jul 02 '18 11:07 careyer

What USB hub is that? Trying to buy one and cant find any information on it. Does anyone have a brand, model number, or link for it? Thanks

Edit: I think I found it on ebay for $4: https://www.ebay.com/itm/Mini-Travel-Portable-USB-2-0-Hi-Speed-4-Port-Adapter-Splitter-Hub-PC-Notebook/173995917456 image

pclever1 avatar Jul 12 '20 16:07 pclever1
