DRAFT: Introduce visq module

[jinevening]

On going draft to introduce visq module.

ONE-DCO-1.0-Signed-off-by: Hyukjin Jeong [email protected]

---

Related to: https://github.com/Samsung/ONE/issues/9694

[jinevening]

@seanshpark I've made a json file from MV1 model using this draft.

Could you visualize the generate file with visquv? I think that can be a test for both this draft and visquv.

{
    "meta": {
        "model": "mobilenet_v1_keepdims_relu6.0to33.circle",
        "metric": "MPEIR",
        "colorscheme": [
            {
                "b": -Infinity,
                "e": 0.1111,
                "c": "#ffffcc"
            },
            {
                "b": 0.1111,
                "e": 0.2222,
                "c": "#ffeda0"
            },
            {
                "b": 0.2222,
                "e": 0.3333,
                "c": "#fed976"
            },
            {
                "b": 0.3333,
                "e": 0.4444,
                "c": "#feb24c"
            },
            {
                "b": 0.4444,
                "e": 0.5556,
                "c": "#fd8d3c"
            },
            {
                "b": 0.5556,
                "e": 0.6667,
                "c": "#fc4e2a"
            },
            {
                "b": 0.6667,
                "e": 0.7778,
                "c": "#e31a1c"
            },
            {
                "b": 0.7778,
                "e": 0.8889,
                "c": "#bd0026"
            },
            {
                "b": 0.8889,
                "e": Infinity,
                "c": "#800026"
            }
        ]
    },
    "qerror": [
        {
            "conv_pw_2_relu/Relu6": 0.3107,
            "conv_dw_3_relu/Relu6": 0.4123,
            "conv_pw_1_relu/Relu6": 0.4148,
            "conv_pw_3_relu/Relu6": 0.3561,
            "conv_dw_13_relu/Relu6": 0.3424,
            "conv_dw_11_relu/Relu6": 0.2673,
            "conv_pad_6/Pad": 0.3413,
            "conv_pad_4/Pad": 0.3561,
            "conv_pw_5_relu/Relu6": 0.3413,
            "conv_pad_2/Pad": 0.4148,
            "conv_dw_5_relu/Relu6": 0.3664,
            "conv_dw_12_relu/Relu6": 0.2074,
            "conv_dw_10_relu/Relu6": 0.2552,
            "conv_dw_2_relu/Relu6": 0.2368,
            "conv_pw_9_relu/Relu6": 0.2879,
            "conv_preds/BiasAdd": 0.096,
            "conv_dw_7_relu/Relu6": 0.5072,
            "conv1_pad/Pad": 0.002,
            "conv_pw_10_relu/Relu6": 0.3139,
            "conv_pw_13_relu/Relu6": 0.8512,
            "conv_pw_4_relu/Relu6": 0.3238,
            "conv_dw_9_relu/Relu6": 0.2811,
            "conv_dw_8_relu/Relu6": 0.3756,
            "conv_dw_6_relu/Relu6": 0.3342,
            "conv_dw_1_relu/Relu6": 0.1459,
            "conv_dw_4_relu/Relu6": 0.3763,
            "conv1_relu/Relu6": 0.0172,
            "conv_pw_8_relu/Relu6": 0.2751,
            "conv_pw_12_relu/Relu6": 0.278,
            "conv_pw_6_relu/Relu6": 0.4567,
            "Mean": 0.238,
            "conv_pw_7_relu/Relu6": 0.3852,
            "conv_pw_11_relu/Relu6": 0.256,
            "conv_pad_12/Pad": 0.256
        }
    ]
}

[seanshpark]

where can I get mobilenet_v1_keepdims_relu6.0to33.circle model?

--> found it in internal release server :)

[seanshpark]

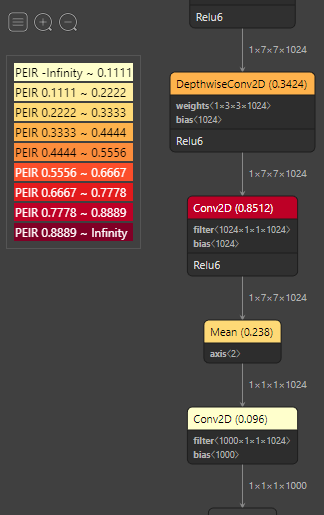

Found some problem with given json file;

• cannot use -Infinity --> should use "-Infinity"
  • JavaScript JSON module cannot parse without "
• it was error not qerror
  • if you want to use qerror key, I'll revise this
• MPEIR is shown as PEIR as I didn't use the metric key yet

[seanshpark]

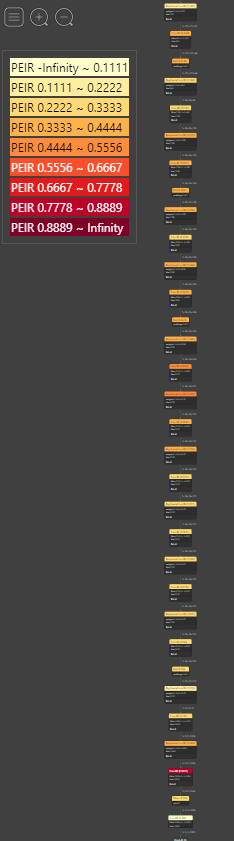

zoom out capture

[jinevening]

Thanks for testing!

JavaScript JSON module cannot parse without "

It seems that Python and JSON module have different conventions for infinity in JSON. "Infinity" or "-Infinity" is not correctly parsed in Python (they are parsed as a string).

Inifinity or NaN is not necessary for now, so I'll prohibit using them in visq.

it was error not qerror

I'll change it back to error.

[jinevening]

Commit roadmap

• [x] Init visq module (README, requires.cmake, CMakeLists.txt) #9876
• [x] Add unittest
• [x] MSE
• [x] infra format
• [x] infra packaging

[jinevening]

Close this as visq is landed.
