system get stuck after running pointcloud using ros3d.js
Hello, I created web app using flask and ros3d.js. I want to show live point cloud on web page which is taken by realsense . But when i show that point cloud my system ram usgae increasing and after sometime system get stuck.
code : app.py
from flask import Flask,render_template
app=Flask(__name__)
@app.route("/")
def home():
return render_template("pointcloud.html")
if __name__=="__main__":
app.run(host="0.0.0.0",port="5002")
pointcloud.html
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<script src="static/js/three.js"></script>
<script src="static/js/eventemitter2.js"></script>
<script src="static/js/roslib.js"></script>
<script src="static/js/ros3d.js"></script>
<!-- <script src="static/js/PointCloud2.js"></script> -->
<script>
/**
* Setup all visualization elements when the page is loaded.
*/
function init() {
// Connect to ROS.
var ros = new ROSLIB.Ros({
url : 'ws://localhost:9090'
});
// Create the main viewer.
var viewer = new ROS3D.Viewer({
divID : 'viewer',
width : 800,
height : 600,
antialias : true
});
// Setup a client to listen to TFs.
var tfClient = new ROSLIB.TFClient({
ros : ros,
angularThres : 0.01,
transThres : 0.01,
rate : 30.0,
fixedFrame : '/camera_link'
});
var cloudClient = new ROS3D.PointCloud2({
ros: ros,
tfClient: tfClient,
topic: '/camera/depth_registered/points',
rootObject: viewer.scene,
material: { size: 0.05, color: 0xff00ff }
});
}
</script>
</head>
<body onload="init()">
<h1>Simple PointCloud2 Example</h1>
<p>Run the following commands in the terminal then refresh the page.</p>
<ol>
<li><tt>roscore</tt></li>
<li><tt>roslaunch rosbridge_server rosbridge_websocket.launch</tt></li>
<li><tt>rosrun tf2_web_republisher tf2_web_republisher</tt></li>
<li><tt>roslaunch openni_launch openni.launch depth_registration:=true</tt></li>
</ol>
<div id="viewer"></div>
</body>
</html>
Ram usage before running app:
Ram usage after running app:(still increasing and after sometime system get stuck)
Another issue is , it not showing proper point cloud.

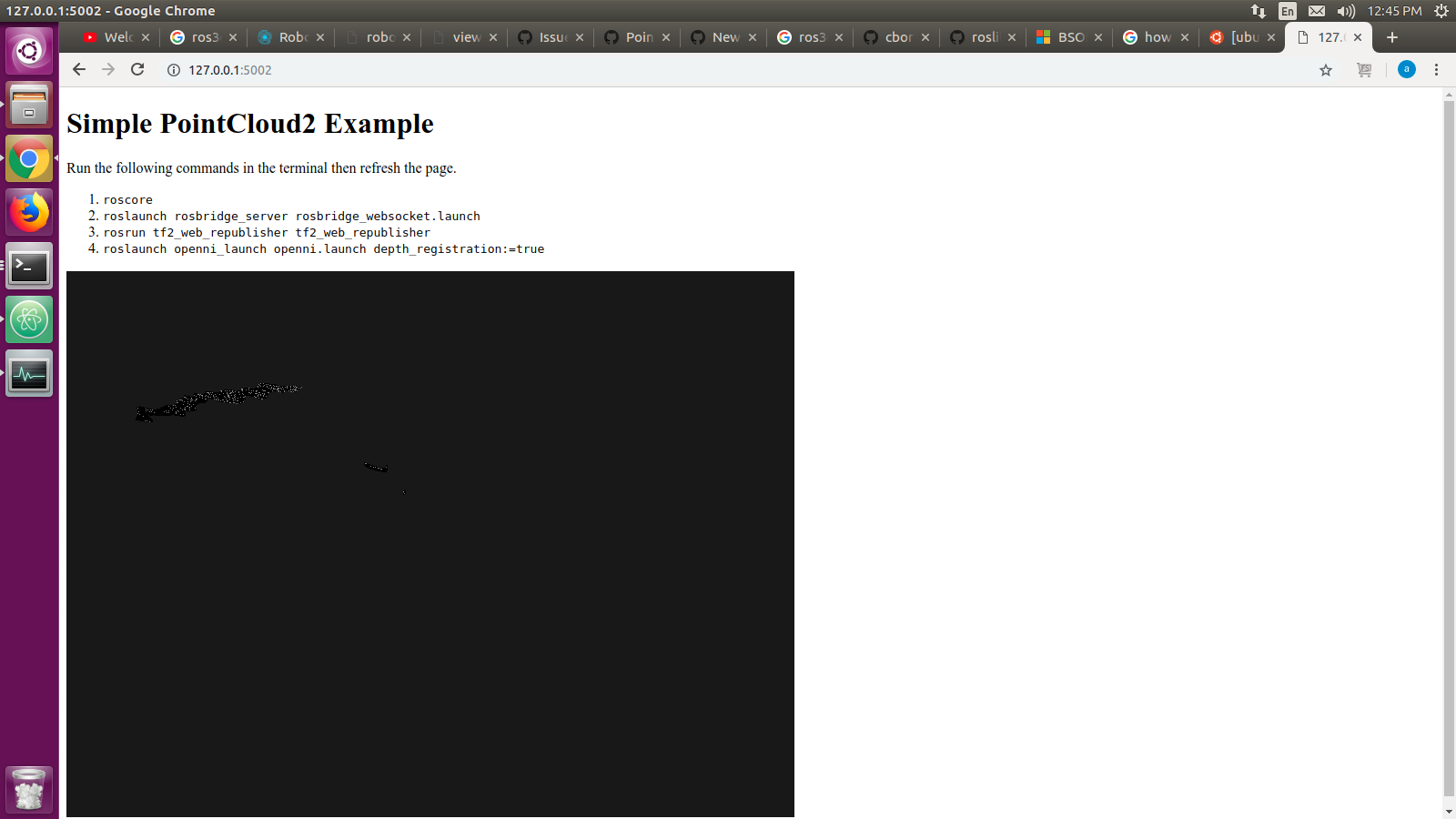

Point cloud in web:
Point cloud in rviz:
Any help with this issue would be greatly appreciated.
What versions of rosbridge_library, rosbridge_server, roslibjs, and ros3djs are you using?
I follow this repository: https://github.com/RobotWebTools/ros3djs/tree/develop/examples https://github.com/RobotWebTools/rosbridge_suite
hello ,
I found this issue when I run web page.
python usage rapidly increasing.(this is related to rosbridge) how I solve this.
@satputeamit I think I have the same broblem -> issues/225 My system does not get stuck (1080ti) , but it sure is working hard!
