qemu-riscv-virt64 smode 下无法启动

[wineee]

使用工具： QEMU emulator version 7.0.0 opensbi v1.0

目前 m态 运行正常，但是 S态 无法启动：

./qemu-nographic-smode.sh 执行结果： ....(opensbi) heap: [0x802323a1 - 0x866323a1] \ | /

• RT - Thread Operating System / | \ 4.1.0 build May 22 2022 01:38:06 2006 - 2022 Copyright by RT-Thread team xcause = 00000002,xtval = 80200112,xepc = 8025fdf8

Exception: Illegal instruction --------------Dump Registers----------------- Function Registers: xcause = 00000005,xtval = 802085a8,xepc = 80224b00

Exception: Load access fault --------------Dump Registers----------------- Function Registers: xcause = 00000005,xtval = 80208386,xepc = 80224d00

Exception: Load access fault --------------Dump Registers----------------- Function Registers: xcause = 00000005,xtval = 80208386,xepc = 80224d00

Exception: Load access fault --------------Dump Registers----------------- Function Registers: xcause = 00000005,xtval = 80208386,xepc = 80224d00

Exception: Load access fault --------------Dump Registers----------------- Function Registers: xcause = 00000005,xtval = 80208386,xepc = 80224d00 无限循环了

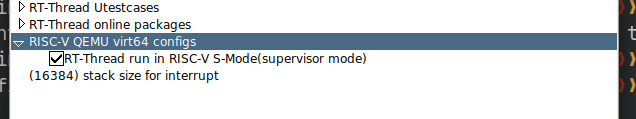

我是用 scons --pyconfig 配置的：

大概测试了一下历史版本 https://github.com/RT-Thread/rt-thread/commit/cda8caeda0cf105dd660192e367017eea0d407ec 是可以用的， https://github.com/RT-Thread/rt-thread/commit/557821fd3dfb6e13fc26b65e199508ba09f49872 开始无法正常使用

[supperthomas]

欢迎尝试修正，PR。

[FatPigeorz]

在https://github.com/RT-Thread/rt-thread/commit/557821fd3dfb6e13fc26b65e199508ba09f49872 中和的最近的commit https://github.com/RT-Thread/rt-thread/commit/f57eb4feb5ee4856299058058eff15593ac0570d 下都没发现这种情况

[mysterywolf]

solve in here: https://github.com/RT-Thread/rt-thread/pull/7040
