[Enhancement] PySimpleGUIQt Browse-type buttons would benefit from having the `size_px` parameter

[April-2-1]

Type of Issue (Enhancement, Error, Bug, Question)

The FileBrowse object has no size_px parameter

Operating System

Windows 10 Enterprise version 10.0.19044

PySimpleGUI Port (tkinter, Qt, Wx, Web)

PysimpleGUIQt (Qt Port)

---

Versions

Python version

Python 3.10.6

PySimpleGUI Version

PySimpleGUIQt v0.35.0

---

Your Experience In Months or Years (optional)

4 Years Python programming experience

5 Years Programming experience overall

Have used another Python GUI Framework? No

Troubleshooting

These items may solve your problem. Please check those you've done by changing - [ ] to - [X]

• [x] Searched main docs for your problem www.PySimpleGUI.org
• [x] Looked for Demo Programs that are similar to your goal. It is recommend you use the Demo Browser! Demos.PySimpleGUI.org
• [ ] If not tkinter - looked for Demo Programs for specific port
• [ ] For non tkinter - Looked at readme for your specific port if not PySimpleGUI (Qt, WX, Remi)
• [x] Run your program outside of your debugger (from a command line)
• [x] Searched through Issues (open and closed) to see if already reported Issues.PySimpleGUI.org
• [x] Have upgraded to the latest release of PySimpleGUI on PyPI (lastest official version)
• [ ] Tried using the PySimpleGUI.py file on GitHub. Your problem may have already been fixed but not released

Detailed Description

I am currently writing a program for which I for once must make it look somewhat Professional. To achieve this, wanted to have uniform Buttons. I used the "size_px" argument to set the size of my buttons to a fix and reproducible value. The FileBrowse Object however does not support "size_px", only "size".

Code To Duplicate

A short program that isolates and demonstrates the problem (Do not paste your massive program, but instead 10-20 lines that clearly show the problem)

This pre-formatted code block is all set for you to paste in your bit of code:

import PySimpleGUIQt as sg

#layout = [[sg.Button("Button", size_px=(100, 100))]]
layout = [[sg.FileBrowse("Browse Devices", file_types=(("Device Configs", "*txt"),), key="BROWSEDEVICEBUTTON", pad=(0, 15), size_px=(100, 100))]]
window = sg.Window("title", layout)

while True:
    event, value = window.read()
    if event == sg.WIN_CLOSED: break

if you comment out the layout with the FileBrowse and instead use the normal Button, you can compare the two with each other.

Watcha Makin?

Im a Student working in a company between semesters and have been tasked with creating a program to write certain Tables to the EEPROM of the devices we are selling. Since this is my first program to be used via a GUI, i chose PySimpleGUI as it is easy to start with.

[jason990420]

Qt port is still under revision, so issues about Qt port maybe replied after new version ready.

Option size_px maybe missed for FileBrowse button, anyway, you can do it by adding it by yourself.

import PySimpleGUIQt as sg

def FileBrowse(button_text='Browse', target=(sg.ThisRow, -1),
        file_types=(("ALL Files", "*"),), initial_folder=None, tooltip=None,
        size=(None, None), size_px=(None, None), auto_size_button=None,
        button_color=None, change_submits=False, enable_events=False,
        font=None, disabled=False, pad=None, key=None, metadata=None):
    return sg.Button(button_text=button_text, button_type=sg.BUTTON_TYPE_BROWSE_FILE,
        target=target, file_types=file_types, initial_folder=initial_folder,
        tooltip=tooltip, size=size, size_px=size_px,
        auto_size_button=auto_size_button, change_submits=change_submits,
        enable_events=enable_events, disabled=disabled, font=font, pad=pad,
        button_color=button_color, metadata=metadata, key=key)

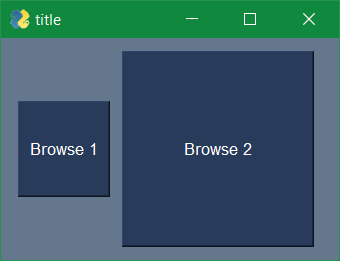

layout = [
    [FileBrowse("Browse 1", size_px=(100, 100)),
     FileBrowse("Browse 2", size_px=(200, 200))],
]
window = sg.Window("title", layout, finalize=True)

while True:
    event, value = window.read()
    if event == sg.WIN_CLOSED:
        break

window.close()

[April-2-1]

Thanks for the quick reply.

While the snippet you posted works great as a workaround, it would still be nice to see this implemented. I would try to do it myself, however between job, uni and exams there is little time left for Contributions.
