Matrix multiplication error when using BlockArrays and CUDA

[GVigne]

Hello, I'm trying to parallelize a code making use of BlockArrays. For this, I am using CUDA, and its array type CuArrays. However, I've noticed a strange behaviour when running the following script:

X = mortar((CUDA.randn(5,1),CUDA.randn(5,1))) Y = mortar((CUDA.randn(5,1),CUDA.randn(5,1))) X'*Y

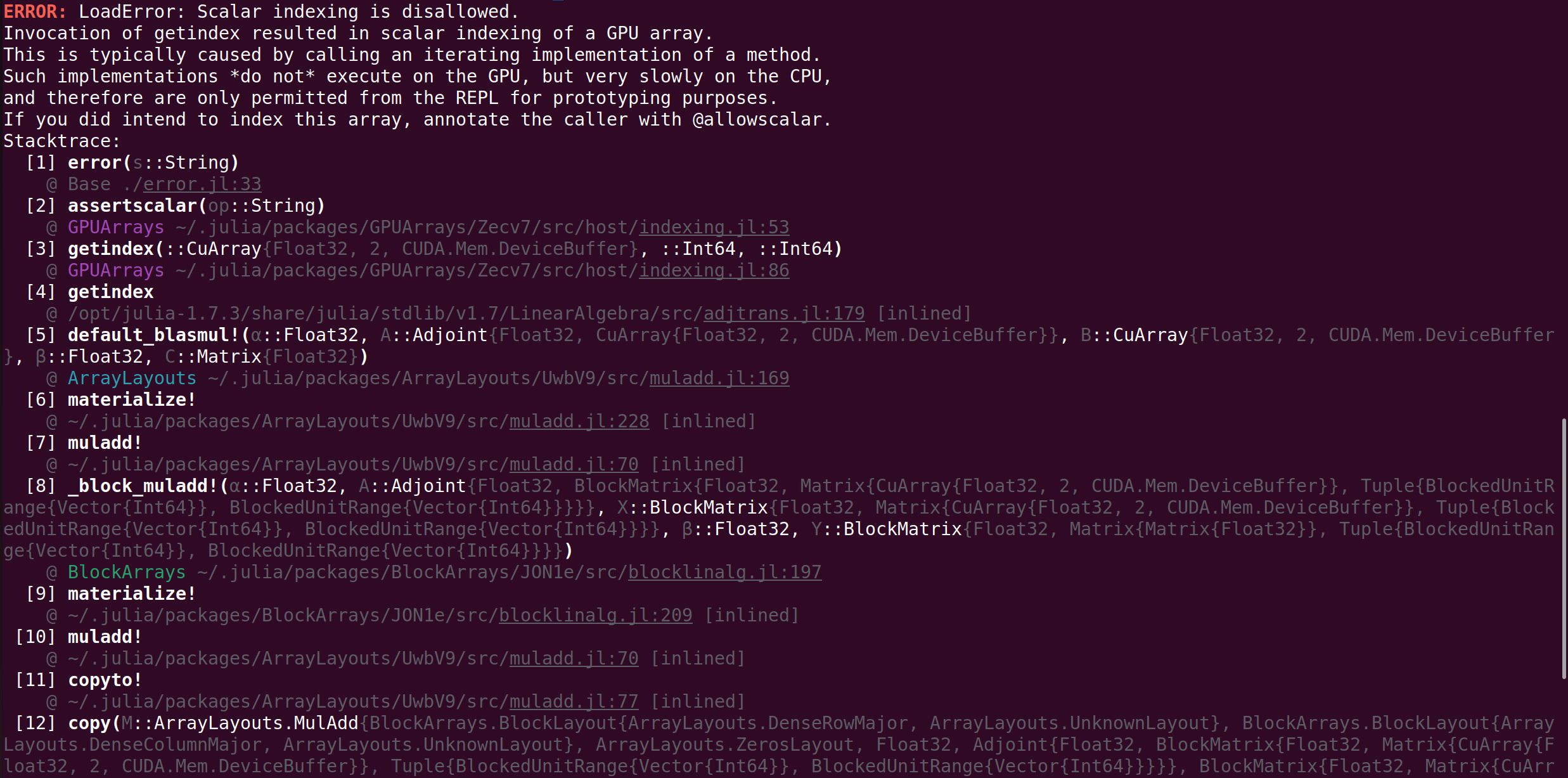

Here is an part of the backtrace:

I have also encoutered the same kind of problem when using the mul! function from LinearAlgebra.

So far I haven't been able to come up with a smart workaround: I can always do CuArray(Array(mortar())) but then of course I loose all benefits of using CUDA because multiple data transfers must be made between the GPU and CPU.

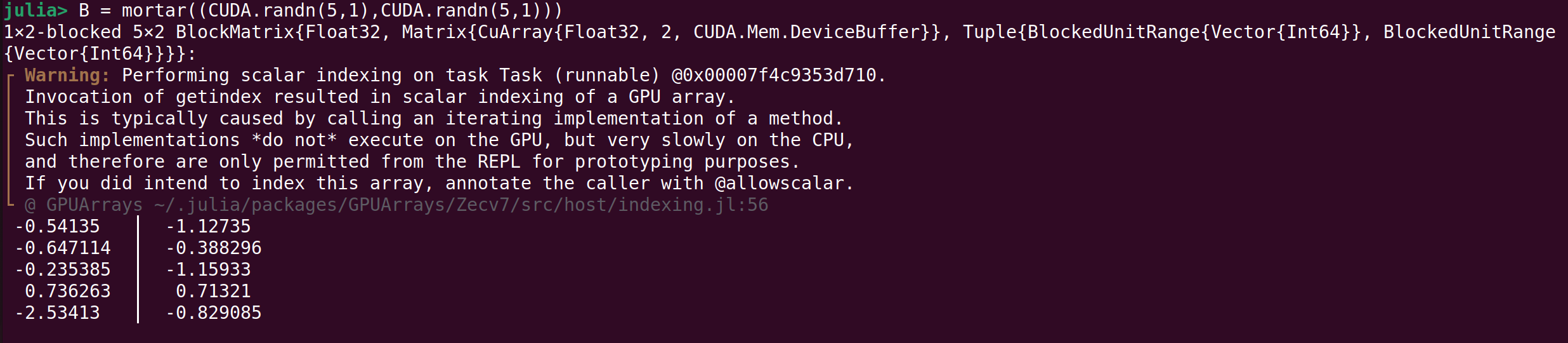

On a side-note, the previous script also trigger the following warning in the REPL, and only in the REPL (doesn't appear when running a script with the julia myscript.jl command). I think it is because the default display method in the Julia REPL tries to access the array element-wise (not GPU compatible) and print every element. It's not really important (not a real error, and other packages have the same problem) but it was surprising at first to have an error when we're really doing nothing more than creating an array.

[dlfivefifty]

I don't have access to CUDA.jl but I believe the issue is that GPUArray <: DenseArray, and ArrayLayouts.jl assumes that all DenseArray satisfy the strided array interface.

A simple fix is to not use DenseArray in ArrayLayouts.jl, that is, change

https://github.com/JuliaMatrices/ArrayLayouts.jl/blob/43b2ee20e60f9c8e525fab0851ca9ba6e46924ec/src/memorylayout.jl#L174

to be @inline MemoryLayout(::Type{<:Array}) = DenseColumnMajor().

Can you try making that change and let me know if it fixes the issue?

[GVigne]

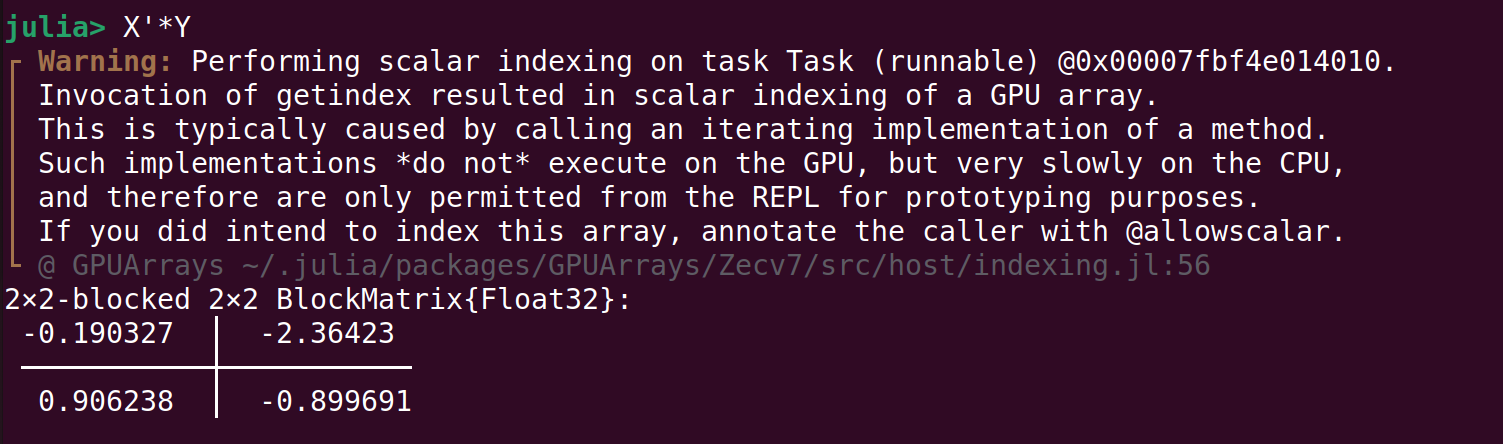

Unfortunately, it doesn't seem to work, but for a different reason. When running the script in the REPL, the result is computed accordingly, but the warning "Performing scalar indexing" is issued.

This is not just a REPL display bug, the computations aren't made on the GPU at all: the script cannot be executed when running it in the terminal.

[dlfivefifty]

I see. I think the solution is to rewrite

https://github.com/JuliaArrays/BlockArrays.jl/blob/32990fcdf401a18921bbf4b15dc14c599e466c47/src/blocklinalg.jl#L197

to call the 5-arg mul! (which didn't exist when I wrote the code). This would avoid piping through ArrayLayouts.jl. Can you try that?

[GVigne]

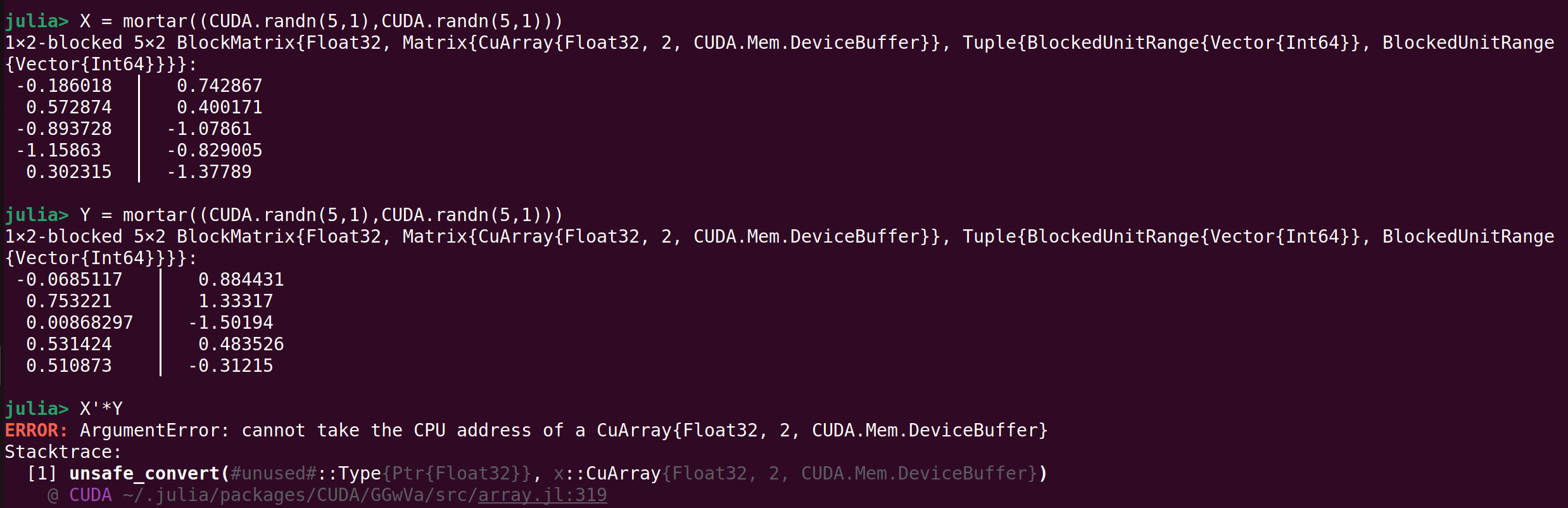

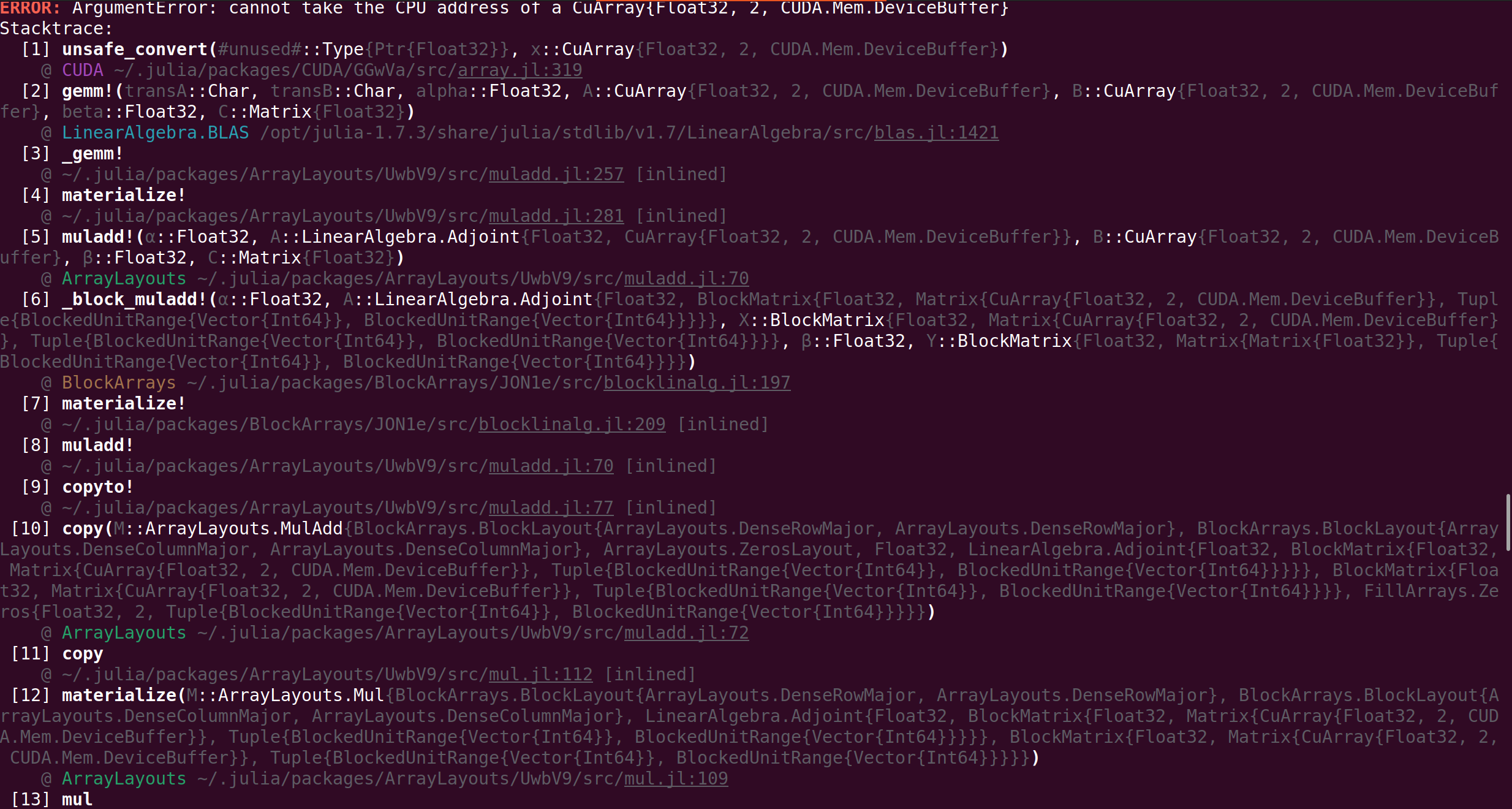

Ok, I have a different error now, but I still can't really understand it. The 5-arg mul! works correctly when using only CuArrays.

At first I thought it came from the Array Y which holds the result, so I spent quite some time investigating: turns out this BlockArray contains matrices and not CuArrays, so I though it could be interfering. I tried to convert it to a BlockArray containing CuArrays, but I didn't manage to make it work either.

[dlfivefifty]

You cut off the full error message and I can't see the types of X and Y

[GVigne]

Sorry, I wasn't clear. I am using the same example as above, that is X = mortar((CUDA.randn(5,1),CUDA.randn(5,1))) Y = mortar((CUDA.randn(5,1),CUDA.randn(5,1)))

[dlfivefifty]

OK the issue is this line:

https://github.com/JuliaArrays/BlockArrays.jl/blob/32990fcdf401a18921bbf4b15dc14c599e466c47/src/blocklinalg.jl#L47

I’m not sure the best way to solve it. Perhaps if we have a function blocktype that returns the the type of the blocks we can instead call similar(BlockArray{T,N,promote_type(blocktype(M.A), blocktype(M.B))}, axes)

[GVigne]

Alright, I think I figured out the overall issue. Replacing muladd! by the 5-argument mul! isn't enough because the array holding the result is not Cuda compatible. Modifying similar at line 47 in blocklinalg.jl as you said still isn't enough: similar(BlockArray{T,N,promote_type(blocktype(M.A), blocktype(M.B))}, axes) calls to this piece of code: https://github.com/JuliaArrays/BlockArrays.jl/blob/32990fcdf401a18921bbf4b15dc14c599e466c47/src/blockarray.jl#L365-L366 This in turn calls: https://github.com/JuliaArrays/BlockArrays.jl/blob/32990fcdf401a18921bbf4b15dc14c599e466c47/src/blockarray.jl#L140-L141 The problem here is that we are creating an Array of Array, but I would like to create an Array of CuArays. Here is what I did to make sure this was really the problem:

• I used the 5-argument mul!
• I naively coded the function blocktype by assuming all blocks in M had the same type, so all this function had to do was return typeof(A.blocks[1])
• I brutally modified https://github.com/JuliaArrays/BlockArrays.jl/blob/32990fcdf401a18921bbf4b15dc14c599e466c47/src/blockarray.jl#L140-L141 to
  @inline BlockArray{T}(::UndefInitializer, baxes::NTuple{N,AbstractUnitRange{Int}}) where {T, N} = initialized_blocks_BlockArray(Array{CuArray{T,N},N}, baxes) This of course, makes the function incompatible with something else than CuArrays: once again, it was just for testing purposes.

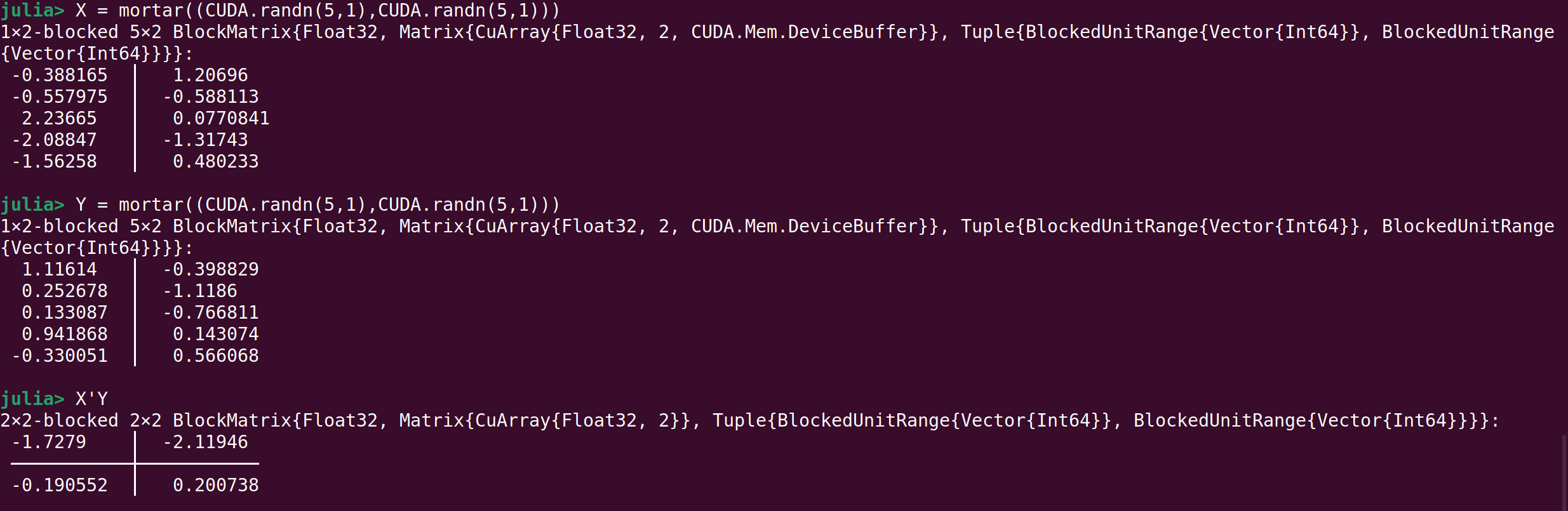

Once this was done, I was able to what I wanted to do initially:

This being said, I don't really know how to solve this issue in a nice way. What would you recommand? I already talked with @antoine-levitt on this issue, maybe he also has some ideas?

[dlfivefifty]

The easy option is to make a new package BlockCuArrays.jl that overloads the right operations. I'm not sure if there's a way of getting it to work otherwise...
