Missing information in graphical projection of a composite block

[kbirken]

From mbeddr.core created by krishnanm86 : mbeddr/mbeddr.core#1877

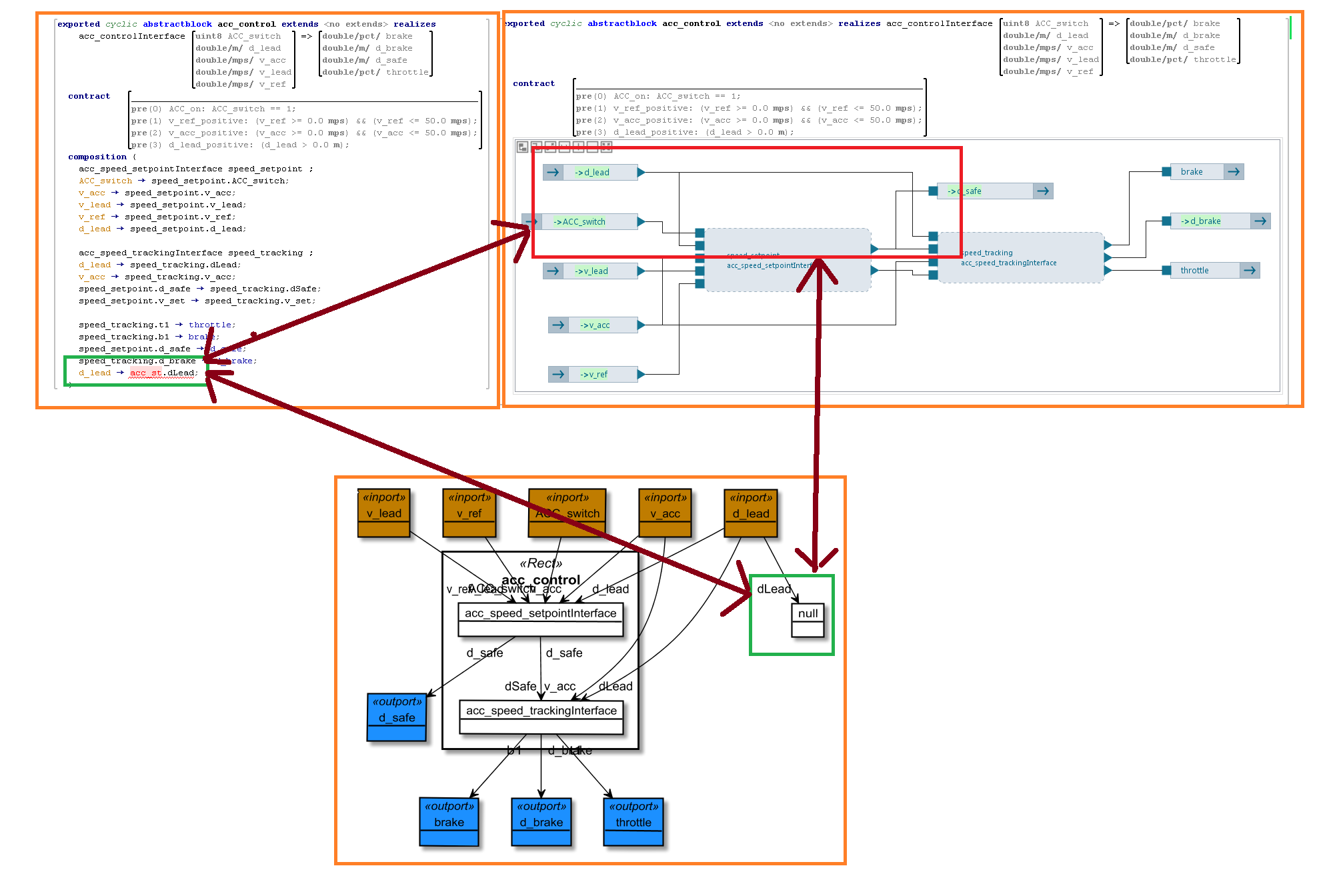

Starting Point The user creates an incomplete connection in the textual view. This is a point of inconsistency visible to the user in textual projection.

User Action The user now switches to graphical view.

Result This user now doesn't see any inconsistency! Though this information is still there, also in the visualization.

Expected Result Multiple folds: Graphical projection should be as much as of a lossless projection of the textual/other projections. Units/conversions are pending and need separate issues to address and are beyond the scope of this issue.
