Interlisp
bad argument to \PUTBASE.UFN out of \MAKEFREEBLOCK while doing RELSTK cleanup
Did (HARDRESET) in a break window to clean up after generating a bunch of interrupts (middle button scroll without modern scroll functions loaded, and got:
(full.sysout of 1-sep-2021 from medley-release)
hemlock% ./run-medley
running: lde -g 1440x900 -sc 1440x900 -m 256 /export/home/briggs/lisp.virtualmem
greet: /export/home/briggs/medley/greetfiles/SIMPLE-INIT
*Error* URAID Called:
Enter the URaid
"Error in uninterruptable system code -- ^N to continue into error handler"
< l
0 : 0x137e2 : IL:RAID
1 : 0x137cc : IL:\MP.ERROR
2 : 0x137b0 : IL:\LISPERROR
3 : 0x1379a : IL:\ILLEGAL.ARG
4 : 0x13782 : IL:\PUTBASE.UFN
5 : 0x1376c : IL:\MAKEFREEBLOCK
6 : 0x1374e : IL:\DECUSECOUNT
7 : 0x13734 : IL:RELSTK
8 : 0x1371e : DEBUGGER:RELEASE-DEBUGGER-WINDOW
9 : 0x13706 : IL:APPLY
10 : 0x136e6 : SI:RESETUNWIND
11 : 0x136d0 : "Clean-up forms"
12 : 0x136ba : IL:\HARDRESET-CLEANUP-RUN
13 : 0x1367c : IL:\HARDRESET-CLEANUP1
14 : 0x1328c : IL:\HARDRESET-CLEANUP
15 : 0x11e42 : IL:\MAKE.PROCESS0
16 : 0x11802 : CL:T
< f 7
IVAR -------
13730 : 0x 6c 0xa9d2 *local* IL:POS {IL:STACKP}0x6ca9d2
## STACK BF at 0x13732 ##
[cnt=0 ]
ivar : 0x3730
>> Bf's ivar says 0x13730 vs. IVar says 0x137da
Fname is IL:RELSTK
## STACK FX at 0x13734 ##
[cnt = 0 ]
#alink 0x3728
fnhead 0x2faf64
nextblock 0x374a
pc 0x48
nametbl 0x739720
#blink 0x374c
#clink 0x8b
1373e : 0x e 0x3352 *local* [pvar0] 13138
13740 : 0x 0 0x 0 IL:\INTERRUPTABLE CL:NIL
13742 : 0x 73 0xbe28
13744 : 0x 6c 0xa9d2
13746 : 0xfffe 0x 0
13748 : 0xfffe 0x 2
< f 6
IVAR -------
1374a : 0x e 0x3352 *local* IL:FRAME 13138
## STACK BF at 0x1374c ##
[cnt=0 ]
ivar : 0x374a
>> Bf's ivar says 0x1374a vs. IVar says 0x137da
Fname is IL:\DECUSECOUNT
## STACK FX at 0x1374e ##
[cnt = 0 ]
#alink 0x373e
fnhead 0x2fa70c
nextblock 0x3766
pc 0xa5
nametbl 0x8000374c
#blink 0xc000
#clink 0x3742
13758 : 0x e 0x12d2 *local* [pvar0] 4818
1375a : 0x e 0x 0 *local* [pvar1] 0
1375c : 0x f 0xccae *local* [pvar2] -13138
1375e : 0x f 0xfff6 *local* [pvar3] -10
13760 : 0xffff 0xffff
13762 : 0x e 0x3352
13764 : 0xfffb 0x 6
< f 5
IVAR -------
13766 : 0x e 0x3352 *local* IL:STK 13138
13768 : 0x f 0xccae *local* IL:SIZE -13138
## STACK BF at 0x1376a ##
[cnt=0 ]
ivar : 0x3766
>> Bf's ivar says 0x13766 vs. IVar says 0x137da
Fname is IL:\MAKEFREEBLOCK
## STACK FX at 0x1376c ##
[cnt = 0 ]
#alink 0x3758
fnhead 0x2fb254
nextblock 0x377a
pc 0x36
nametbl 0x74f28c
#blink 0x61
#clink 0xd972
13776 : 0x 68 0x27da
13778 : 0x f 0xccae
< f 4
IVAR -------
1377a : 0x 1 0x3352 *local* IL:X {unknown}0x13352
1377c : 0x f 0xccae *local* IL:V -13138
1377e : 0x e 0x 1 *local* IL:D 1
## STACK BF at 0x13780 ##
[cnt=0 ]
ivar : 0x377a
>> Bf's ivar says 0x1377a vs. IVar says 0x137da
Fname is IL:\PUTBASE.UFN
## STACK FX at 0x13782 ##
[cnt = 0 ]
#alink 0x3776
fnhead 0x2e741c
nextblock 0x3796
pc 0x4d
nametbl 0xe0078
#blink 0xe
#clink 0x190
1378c : 0xffff 0xffff *local* [pvar0] [variable not bound]
1378e : 0xffff 0xffff *local* [pvar1] [variable not bound]
13790 : 0x e 0x 78
13792 : 0x e 0x 1
13794 : 0x 1 0x3353
< f 3
IVAR -------
13796 : 0x f 0xccae *local* IL:X -13138
## STACK BF at 0x13798 ##
[cnt=0 ]
ivar : 0x3796
>> Bf's ivar says 0x13796 vs. IVar says 0x137da
Fname is IL:\ILLEGAL.ARG
## STACK FX at 0x1379a ##
[cnt = 0 ]
#alink 0x378c
fnhead 0x30cd3c
nextblock 0x37a8
pc 0x30
nametbl 0xe0208
#blink 0xe
#clink 0x78
137a4 : 0x e 0x 78
137a6 : 0x f 0xccae
<

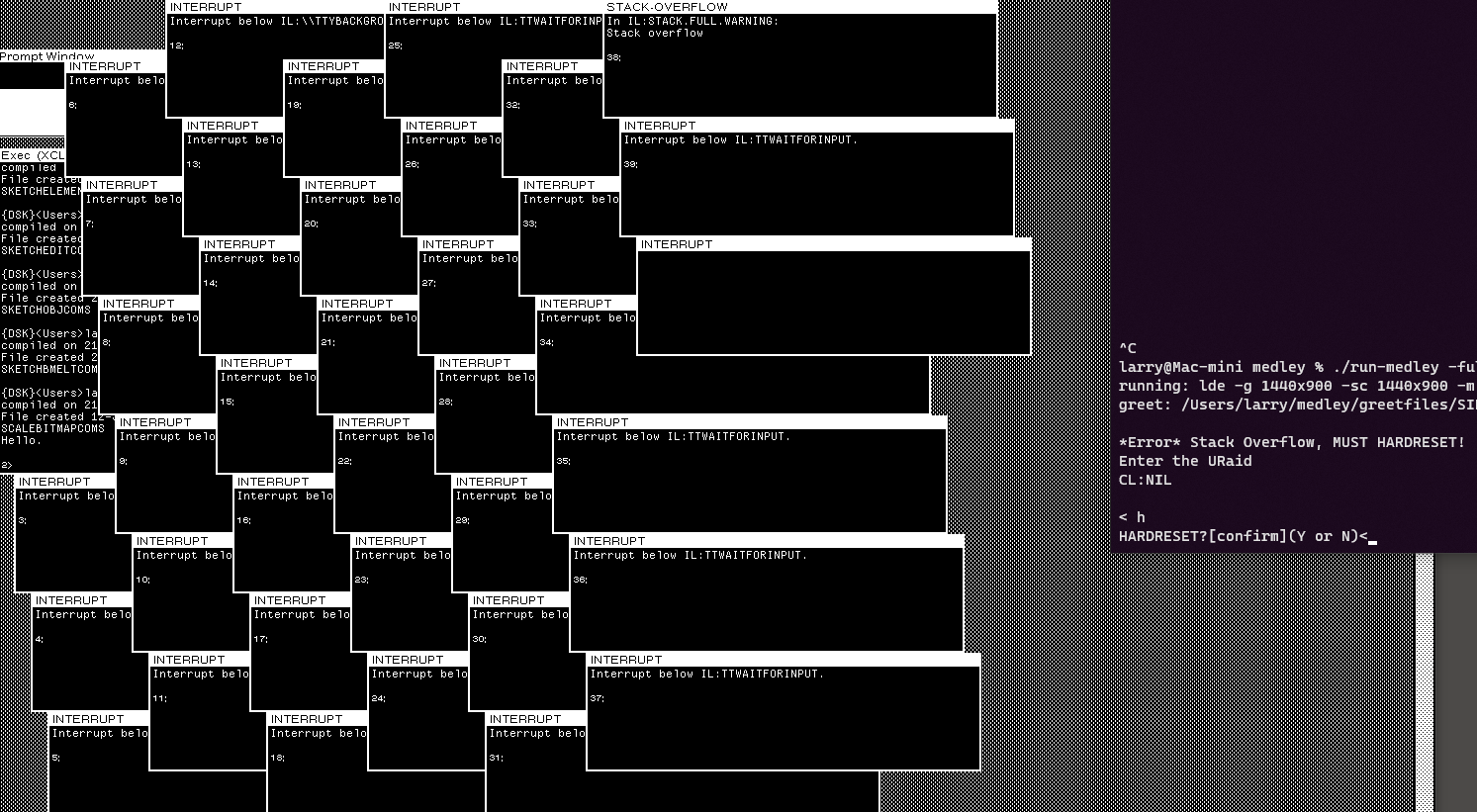

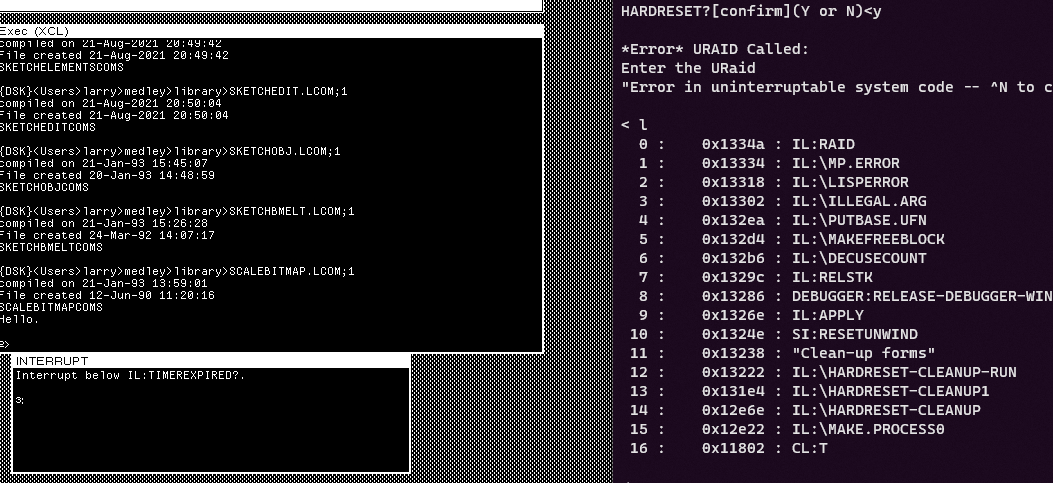

Just to confirm, I was able to generate a similar error by holding down Control-B until it got a stack overflow to RAID and did a 'h' for Hard reset.
which cleaned up a lot of the break windows but one. I wonder if running with stack check diagnostics would narrow the possible causes -- missing UNINERRUPTABLY? Bad refcount logic? The break window has a pointer to the stack and when you close the window after a resetform it isn't releasing right?
Try it on big-endian / 32 bit? likely not a new problem.
Doing another h - Hard Reset and it seemed to recover
I was running on 32-bit little-endian. I've just tried again on a 32-bit big-endian system -- did a dozen ctrl-B, then in one of the windows did a (HARDRESET), and it recovered until the background GC died with:
*Error* creating 0 long FSP
Enter the URaid
CL:NIL
< l
0 : 0x126d4 : IL:\MAIKO.DORECLAIM
1 : 0x126c4 : IL:RECLAIM
2 : 0x126b0 : IL:PERIODICALLYRECLAIM
3 : 0x12698 : IL:\BACKGROUND.PROCESS
4 : 0x12678 : IL:\EVALFORM
5 : 0x1262a : IL:\MAKE.PROCESS0
6 : 0x11802 : CL:T
Running in lisp.venuesysout, do two ctrl-B then (IL:HARDRESET) in one of the break windows, and got
hemlock% ./run-medley loadups/lisp.venuesysout
running: lde -g 1440x900 -sc 1440x900 -m 256 loadups/lisp.venuesysout
greet: /export/home/briggs/medley/greetfiles/SIMPLE-INIT
*Error* URAID Called:
Enter the URaid
"Error in uninterruptable system code -- ^N to continue into error handler"
< l
0 : 0x136e0 : IL:RAID
1 : 0x136ca : IL:\MP.ERROR
2 : 0x136ae : IL:\LISPERROR
3 : 0x13698 : IL:\ILLEGAL.ARG
4 : 0x13680 : IL:\PUTBASE.UFN
5 : 0x1366a : IL:\MAKEFREEBLOCK
6 : 0x1364c : IL:\DECUSECOUNT
7 : 0x13632 : IL:RELSTK
8 : 0x1361a : IL:APPLY
9 : 0x135fa : SI:RESETUNWIND
10 : 0x135e4 : "Clean-up forms"
11 : 0x135ce : IL:\HARDRESET-CLEANUP-RUN
12 : 0x13590 : IL:\HARDRESET-CLEANUP1
13 : 0x1326e : IL:\HARDRESET-CLEANUP
14 : 0x13222 : IL:\MAKE.PROCESS0
15 : 0x11802 : CL:T
<
< f 5
IVAR -------
13664 : 0x e 0x 0 *local* IL:STK 0
13666 : 0x f 0xfff6 *local* IL:SIZE -10
## STACK BF at 0x13668 ##
[cnt=0 ]
ivar : 0x3664
>> Bf's ivar says 0x13664 vs. IVar says 0x136d8
Fname is IL:\MAKEFREEBLOCK
## STACK FX at 0x1366a ##
[cnt = 0 ]
#alink 0x3656
fnhead 0x2fd17c
nextblock 0x3678
pc 0x36
nametbl 0x0
#blink 0x0
#clink 0x0
13674 : 0xffff 0xffff
13676 : 0x f 0xfff6
It's not a good thing to be making a free block of stack at 0 and size -10!
This is reproducible in the lisp.venuesysout as well, in a 32-bit compiled little-endian version on my Mac.
HARDESET throws away the entire stack for all processes. It should be accompanied by clearing (without regard to reference counting) all stack pointers as in CLEARSTK(CLEAR). Not sure why this isn't happening.
the other problem noticed is how you get into a situation where HARDRESET is needed, since it's normally a sledge-hammer kind of tool, invoked during stack overflow or other errors in RAID. holding down control-b is one way -- it creates a break inside a break for a screenful of frames. Then you get a break window but there's not enough stack left to do anything. Two things would help -- (a) don't control-b break while starting or running in a break; some kind of time-delay since last break + looking to see if you're at a break prompt and not interrupting (this includes from wheel-scroll) and (b) leave more stack reserve for debugging stack overflow
HARDRESET isn't easy when running online. I think something akin to UNINTERRUPTABLY but "softer" -- ignore control-B between when you type one and it pops up a break window -- would patch the immediate problem. The HARDRESET code requires reactivating some memory cells.
