Style editor: Add MaxScale and MinScale parameter to style editor rules.

Open Inogeo opened this issue 3 years ago • 0 comments

Is your feature request related to a problem? Please describe.

When I want to display symbol and label at distinct scale range on the same layer, I have to create a map, with separate layers for symbols and label (with different scale range rules each).

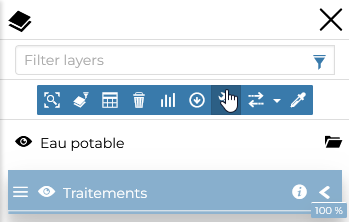

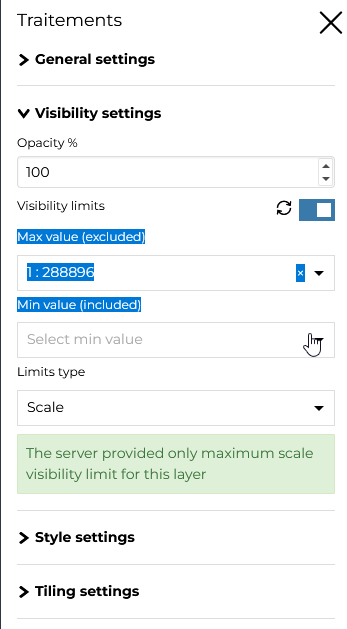

Describe the solution you'd like Instead of setting the scale range here (see screenshot below): image image

Define the scale range inside a "rule" directly in the style editor.

The SLD properties<MaxScaleDenominator>[MIN_RANGE_VALUE]</MaxScaleDenominator> and <MaxScaleDenominator>[MIN_RANGE_VALUE]</MaxScaleDenominator>

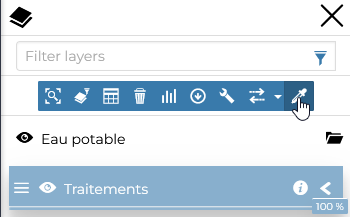

The interface could look like this: image image

These select lists for max/min scales can be then added to every rules types. image

Describe alternatives you've considered None.

Additional context None.

Inogeo avatar Aug 19 '22 06:08 Inogeo
